Front Suspension - King pins and Hubs

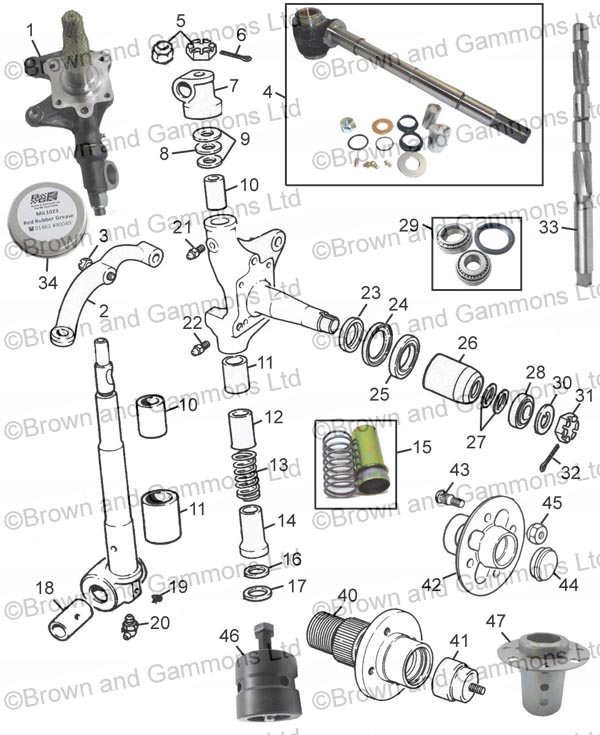

Image for Front Suspension - King pins and Hubs

Item

Description

Action

1
Image for EX STUB AXLE RH MGB *SUR50*
EX STUB AXLE RH MGB *SUR50*

Product Code: BTB764E

£59.16

£49.30

each x

1
Image for STUB AXLE ASSEMBLY RH NEW MGB
STUB AXLE ASSEMBLY RH NEW MGB

Product Code: BTB764N.ASSY

£126.00

£105.00

each x

1
Image for EX STUB AXLE LH MGB *SUR50*
EX STUB AXLE LH MGB *SUR50*

Product Code: BTB765E

£59.16

£49.30

each x

1
Image for STUB AXLE ASSEMBLY LH NEW MGB
STUB AXLE ASSEMBLY LH NEW MGB

Product Code: BTB765N.ASSY

£126.00

£105.00

each x

2
Image for STEERING ARM MGB RH - USED
STEERING ARM MGB RH - USED

Product Code: BTB396R

£48.00

£40.00

each x

2
Image for STEERING ARM MGB LH - USED
STEERING ARM MGB LH - USED

Product Code: BTB397R

£48.00

£40.00

each x

3
Image for BOLT 7/16 INCH UNF STRG ARM MGB
BOLT 7/16 INCH UNF STRG ARM MGB

Product Code: BTB410

£3.01

£2.51

each x

4
Image for KING PIN KIT MGB (ONE SIDE)
KING PIN KIT MGB (ONE SIDE)

Product Code: TD81

£41.34

£34.45

each x

5
Image for NUT KINGPIN TOP MGB
NUT KINGPIN TOP MGB

Product Code: ATC4265

£3.96

£3.30

each x

5
Image for NYLOC NUT THIN TYPE 5/8 INCH UNF
NYLOC NUT THIN TYPE 5/8 INCH UNF

Product Code: GHF276

Alternative to ATC4265

£0.54

£0.45

each x

6
Image for SPLIT PIN 9/64 INCH x 2.1/4 INCH (PACK 10)

£0.13

£0.11

Pack of 10 x

7
Image for TRUNNION-KINGPIN UPPER MGB
TRUNNION-KINGPIN UPPER MGB

Product Code: GSJ283

£39.90

£33.25

each x

8
Image for THRUST WASHER KING PIN
THRUST WASHER KING PIN

Product Code: ATC4264

£3.54

£2.95

each x

9
Image for SHIM 0.051 - 0.057 inch MGC-MGB
SHIM 0.051 - 0.057 inch MGC-MGB

Product Code: ATC4261

£0.72

£0.60

each x

9
Image for SHIM 0.060- 0.063 inch MGC-MGB
SHIM 0.060- 0.063 inch MGC-MGB

Product Code: ATC4262

£0.90

£0.75

each x

9
Image for Shim 0.063 0.069 inch MGC-MGB
Shim 0.063 0.069 inch MGC-MGB

Product Code: ATC4263

£0.72

£0.60

each x

10
Image for TOP BUSH MGC MGB KINGPIN
TOP BUSH MGC MGB KINGPIN

Product Code: 1B4610

£7.10

£5.92

each x

10
Image for TOP BUSH MGC MGB KINGPIN
TOP BUSH MGC MGB KINGPIN

Product Code: 1B4610

£7.10

£5.92

each x

11
Image for BOTTOM BUSH MGB MGC KINGPIN
BOTTOM BUSH MGB MGC KINGPIN

Product Code: BTB802

£4.26

£3.55

each x

11
Image for BOTTOM BUSH MGB MGC KINGPIN
BOTTOM BUSH MGB MGC KINGPIN

Product Code: BTB802

£4.26

£3.55

each x

12
Image for DUST TUBE MGB KING PIN
DUST TUBE MGB KING PIN

Product Code: 1G4271

£3.20

£2.67

each x

13
Image for SPRING FOR KINGPIN DUST TUBE
SPRING FOR KINGPIN DUST TUBE

Product Code: 2K8951

£0.54

£0.45

each x

14
Image for BOTTOM DUST EXCLUDER TUBE
BOTTOM DUST EXCLUDER TUBE

Product Code: ATC4240

£3.12

£2.60

each x

15
Image for BOTTOTM DUST EXCLUDER KIT (3 PCS)
BOTTOTM DUST EXCLUDER KIT (3 PCS)

Product Code: 21B251K

£7.00

£5.83

KIT x

16
Image for SEAL DUST TUBE
SEAL DUST TUBE

Product Code: 21B252

£0.74

£0.62

each x

17
Image for 'O' RING MGB KING PIN
'O' RING MGB KING PIN

Product Code: TRS1620

£0.36

£0.30

each x

18
Image for BUSH KING PIN LOWER MGB TYP A
BUSH KING PIN LOWER MGB TYP A

Product Code: BTB768

Ream bush after fitting

£7.32

£6.10

each x

19
Image for GRUB SCREW - NLA
GRUB SCREW - NLA

Product Code: BTB350

20
Image for GREASE NIPPLE 45 DEGREES
GREASE NIPPLE 45 DEGREES

Product Code: UHN445

£1.26

£1.05

each x

21
Image for GREASE NIPPLE MGB/C MID MGA
GREASE NIPPLE MGB/C MID MGA

Product Code: LN10051

£0.66

£0.55

each x

22
Image for GREASE NIPPLE KING PIN MGB
GREASE NIPPLE KING PIN MGB

Product Code: 549229A

£1.35

£1.13

each x

23
Image for COLLAR STUB AXLE
COLLAR STUB AXLE

Product Code: BTB183

£15.48

£12.90

each x

23
Image for COLLAR STUB AXLE MGB S/HAND
COLLAR STUB AXLE MGB S/HAND

Product Code: BTB183R

£14.40

£12.00

each x

24
Image for OIL SEAL FRT HUB MGB/C & T/Cam
OIL SEAL FRT HUB MGB/C & T/Cam

Product Code: GHS101

£1.80

£1.50

each x

25
Image for BEARING HUB INNER MGB/C
BEARING HUB INNER MGB/C

Product Code: GHB105

£10.14

£8.45

each x

26
Image for DISTANCE PIECE MGB F/WHL BRG
DISTANCE PIECE MGB F/WHL BRG

Product Code: 88G484

£9.54

£7.95

each x

26
Image for USED DISTANCE PIECE MGB FRT WHEEL BEARING

£7.14

£5.95

each x

27
Image for SHIM 003 WHEEL BEARING MGB/C
SHIM 003 WHEEL BEARING MGB/C

Product Code: ATB4240

£0.66

£0.55

each x

27
Image for SHIM 005 WHEEL BEARING MGB/C
SHIM 005 WHEEL BEARING MGB/C

Product Code: ATB4241

£0.66

£0.55

each x

27
Image for SHIM 010 WHEEL BEARING MGB/C
SHIM 010 WHEEL BEARING MGB/C

Product Code: ATB4242

£0.72

£0.60

each x

27
Image for SHIM 020 WHEEL BEARING MGB
SHIM 020 WHEEL BEARING MGB

Product Code: ATB4243

£0.66

£0.55

each x

27
Image for SHIM .030 WHEEL BRG MGB
SHIM .030 WHEEL BRG MGB

Product Code: BTB656

£0.60

£0.50

each x

28
Image for BEARING HUB OUTER MGB/C
BEARING HUB OUTER MGB/C

Product Code: GHB102

£10.50

£8.75

each x

29
Image for FRONT WHEEL BEARING KIT MGB/C
FRONT WHEEL BEARING KIT MGB/C

Product Code: GHK1005

£10.14

£8.45

KIT x

29
Image for MGB/C FRONT WHEEL BEARING KIT OE
MGB/C FRONT WHEEL BEARING KIT OE

Product Code: GHK1005OE

£12.00

£10.00

each x

30
Image for WASHER FRONT WHEEL BRG.MGB MGC MGA
WASHER FRONT WHEEL BRG.MGB MGC MGA

Product Code: 1A4742

£0.98

£0.82

each x

31
Image for NUT FRONT HUB BEARING MGB
NUT FRONT HUB BEARING MGB

Product Code: 53K330

£3.95

£3.29

each x

32
Image for SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

£0.12

£0.10

Pack of 10 x

33
Image for MGB KINGPIN BUSH REAMER
MGB KINGPIN BUSH REAMER

Product Code: 18G597

This reamer finishes newly installed king pin bushes to the correct size. Must be used in accordance with Workshop manual

£203.70

£169.75

each x

34
Image for Red Rubber Grease in 15 gram Tin
Red Rubber Grease in 15 gram Tin

Product Code: MIL1023

£2.95

£2.46

each x

40
Image for HUB R/H FRONT 12 TPI MGB
HUB R/H FRONT 12 TPI MGB

Product Code: BTB346

1962-64 Roadsters to GHN3 30850

£85.06

£70.88

each x

40
Image for HUB L/H FRONT 12 TPI MGB
HUB L/H FRONT 12 TPI MGB

Product Code: BTB347

1962-64 Roadsters to GHN3 30850

£85.06

£70.88

each x

40
Image for FRONT HUB WIRE WHEEL RH MGB
FRONT HUB WIRE WHEEL RH MGB

Product Code: BTB730

8 T.P.I. 1964 on GHN3 30851 on

£73.20

£61.00

each x

40
Image for FRONT HUB WIRE WHEEL LH MGB
FRONT HUB WIRE WHEEL LH MGB

Product Code: BTB731

8 T.P.I. 1964 on GHN3 30851 on

£73.20

£61.00

each x

41
Image for GREASE CAP W/WHEEL HUB MGB/C
GREASE CAP W/WHEEL HUB MGB/C

Product Code: BTC392

Wire wheels

£3.80

£3.17

each x

42
Image for FRONT HUB BOLT ON WHEELS MGB
FRONT HUB BOLT ON WHEELS MGB

Product Code: DAM4121

Bolt on wheels

£107.94

£89.95

each x

43
Image for Wheel stud MGB
Wheel stud MGB

Product Code: BTB187

To GHN/D5 490636

£3.90

£3.25

each x

43
Image for Stud Axle Disc Wheel
Stud Axle Disc Wheel

Product Code: BTB229

GHN/D5 490637 on

£3.18

£2.65

each x

44
Image for CAP GREASE MIDGET  MGB
CAP GREASE MIDGET MGB

Product Code: 2A4067

Disc wheels

£5.94

£4.95

each x

44
Image for GREASE CAP FRONT HUB
GREASE CAP FRONT HUB

Product Code: ATB4098

£7.10

£5.92

each x

45
Image for WHEEL NUT MGB ROSTYLE WHEEL
WHEEL NUT MGB ROSTYLE WHEEL

Product Code: AHH9152

£1.50

£1.25

each x

45
Image for WH/NUT ROSTYLE MGB WITH LOGO
WH/NUT ROSTYLE MGB WITH LOGO

Product Code: AHH9152A

£1.75

£1.46

each x

45
Image for WHEEL NUT V8
WHEEL NUT V8

Product Code: BHH1087

£4.52

£3.77

each x

46
Image for 42mm 8TPi Hub Puller tool
42mm 8TPi Hub Puller tool

Product Code: 42MMHUBTOOL

£144.00

£120.00

each x

47
Image for Rear axle hub tool MGB MGA
Rear axle hub tool MGB MGA

Product Code: GAC1500BG

£59.94

£49.95

each x

Products not on diagram

Image for STEERING LEVER RH MGB
STEERING LEVER RH MGB

Product Code: BTB396

Has been superseded by
Image for STEERING ARM MGB RH - USED
STEERING ARM MGB RH - USED

Product Code: BTB396R

£48.00

£40.00

each x

Image for STEERING LEVER LH MGB
STEERING LEVER LH MGB

Product Code: BTB397

Has been superseded by
Image for STEERING ARM MGB LH - USED
STEERING ARM MGB LH - USED

Product Code: BTB397R

£48.00

£40.00

each x
