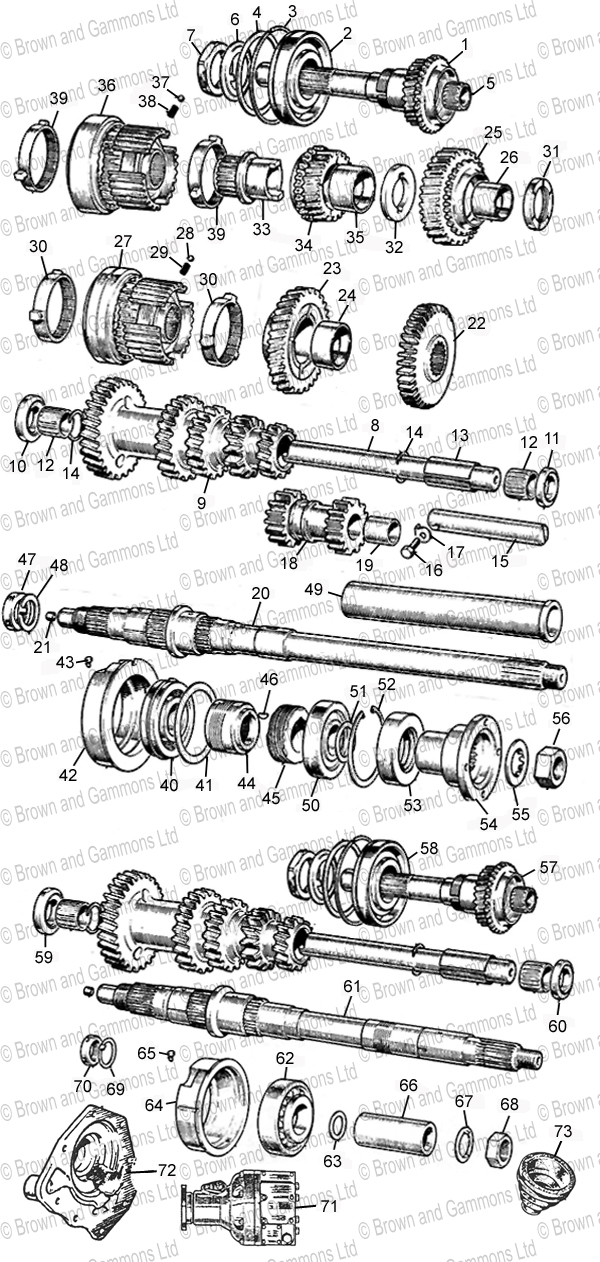

Gearbox

Image for Gearbox

Item

Description

Action

2
Image for BEARING GEARBOX SHAFT MGB
BEARING GEARBOX SHAFT MGB

Product Code: 6K830

£14.46

£12.05

each x

3
Image for SPRING RING GEARBOX MGB
SPRING RING GEARBOX MGB

Product Code: 6K780

£0.83

£0.69

each x

4
Image for SHIM .002 1ST MOTION SHAFT MGB
SHIM .002 1ST MOTION SHAFT MGB

Product Code: 6K778

Quantity - as required

£0.72

£0.60

each x

4
Image for SHIM .005 1ST MOTION SHAFT MGB
SHIM .005 1ST MOTION SHAFT MGB

Product Code: 6K779

Quantity - as required

£0.89

£0.74

each x

5
Image for SPIGOT BEARING MGB GEARBOX
SPIGOT BEARING MGB GEARBOX

Product Code: 22H774

£6.72

£5.60

each x

6
Image for LOCKWHR 1ST MOTION SHT B 4SY
LOCKWHR 1ST MOTION SHT B 4SY

Product Code: 22H798

£1.98

£1.65

each x

7
Image for NUT 1ST MOTION SHAFT MGB
NUT 1ST MOTION SHAFT MGB

Product Code: 22B356

£2.40

£2.00

each x

8
Image for LAYSHAFT 4 SYNC MGB/C/V8 GEARBOX
LAYSHAFT 4 SYNC MGB/C/V8 GEARBOX

Product Code: 22B280

£33.14

£27.62

each x

9
Image for LAYGEAR MGC NON O/D & MGB ALL 4 SYNCHRO

£150.00

£125.00

each x

10
Image for THRUST WASHER 0.154-6 - NLA
THRUST WASHER 0.154-6 - NLA

Product Code: 22B301

11
Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B302

11
Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B303

11
Image for THRUST WASHER  - NLA
THRUST WASHER - NLA

Product Code: 22B304

11
Image for THRUST WASHER - MGC - NLA
THRUST WASHER - MGC - NLA

Product Code: 22B305

12
Image for BEARING NEEDLE ROLLER L/SHAFT
BEARING NEEDLE ROLLER L/SHAFT

Product Code: AHU1041A

£9.00

£7.50

each x

12
Image for BEARING NEEDLE ROLLER L/SHAFT
BEARING NEEDLE ROLLER L/SHAFT

Product Code: AHU1041A

£9.00

£7.50

each x

13
Image for DISTANCE TUBE LAYGEAR MGB 4 SYNR
DISTANCE TUBE LAYGEAR MGB 4 SYNR

Product Code: 22H478

£8.34

£6.95

each x

14
Image for SPRING RING L/GEAR MGB 4 SYNR
SPRING RING L/GEAR MGB 4 SYNR

Product Code: 22H477

£0.46

£0.38

each x

14
Image for SPRING RING L/GEAR MGB 4 SYNR
SPRING RING L/GEAR MGB 4 SYNR

Product Code: 22H477

£0.46

£0.38

each x

15
Image for SHAFT REVERSE - NLA
SHAFT REVERSE - NLA

Product Code: 88G467

16
Image for SCREW REVERSE SHAFT MGB
SCREW REVERSE SHAFT MGB

Product Code: 1G3581

17
Image for USE WF600041
USE WF600041

Product Code: GHF321

Has been superseded by
Image for Shake Proof Washer Int  1/4 INCH (Pack 10)

£0.12

£0.10

Pack of 10 x

18
Image for REVERSE GEAR
REVERSE GEAR

Product Code: 22H308

19
Image for BUSH REV/GEAR MGB 4 SYNRCO
BUSH REV/GEAR MGB 4 SYNRCO

Product Code: 22H310

£2.00

£1.67

each x

20
Image for MOTION SHAFT MGB 4 SYN GEARBOX
MOTION SHAFT MGB 4 SYN GEARBOX

Product Code: 22B373

£210.00

£175.00

each x

21
Image for OIL RESTRICTOR M/SHF G/B MGB A
OIL RESTRICTOR M/SHF G/B MGB A

Product Code: 1A1964

£0.66

£0.55

each x

22
Image for REVERSE GEAR MGB 4 SYNCHRO
REVERSE GEAR MGB 4 SYNCHRO

Product Code: DAM1740

£59.70

£49.75

each x

23
Image for FIRST GEAR MGB MGC
FIRST GEAR MGB MGC

Product Code: DAM6226

£65.83

£54.86

each x

24
Image for BUSH - 1ST GEAR
BUSH - 1ST GEAR

Product Code: 22H281

25
Image for 2ND GEAR MGB MGC MGB V8
2ND GEAR MGB MGC MGB V8

Product Code: DAM6228

£114.00

£95.00

each x

26
Image for BUSH  2ND GEAR
BUSH 2ND GEAR

Product Code: 22H274

£12.90

£10.75

each x

27
Image for 1ST & 2ND SPEED SYNCRO MGB
1ST & 2ND SPEED SYNCRO MGB

Product Code: DAM4104

28
Image for BALL BEARING MGB MIDGET MGA
BALL BEARING MGB MIDGET MGA

Product Code: BLS109

£0.66

£0.55

each x

29
Image for SPRG SYNCRO HUB MGB 4 SYNCRO
SPRG SYNCRO HUB MGB 4 SYNCRO

Product Code: 22H827

£0.73

£0.61

each x

30
Image for BAULK RING G/BOX MGB/MBC
BAULK RING G/BOX MGB/MBC

Product Code: 22H1028

£22.20

£18.50

each x

31
Image for THRUST WASHER
THRUST WASHER

Product Code: 22H276

32
Image for INTERLOCKING RING MGB
INTERLOCKING RING MGB

Product Code: 22H1034

£7.80

£6.50

each x

33
Image for GEAR HUB MGB 4-SYNC GEARBOX
GEAR HUB MGB 4-SYNC GEARBOX

Product Code: 22H1062

£3.60

£3.00

each x

34
Image for 3RD GEAR MGB MBGGTV8 MGC
3RD GEAR MGB MBGGTV8 MGC

Product Code: DAM6230

£73.32

£61.10

each x

35
Image for BUSH - 1ST GEAR
BUSH - 1ST GEAR

Product Code: 22H281

36
Image for SYNCRO ASS 3RD & 4TH MGB 4 SY
SYNCRO ASS 3RD & 4TH MGB 4 SY

Product Code: 22H1168

37
Image for BALL BEARING MGB MIDGET MGA
BALL BEARING MGB MIDGET MGA

Product Code: BLS109

£0.66

£0.55

each x

38
Image for SPRG SYNCRO HUB MGB 4 SYNCRO
SPRG SYNCRO HUB MGB 4 SYNCRO

Product Code: 22H827

£0.73

£0.61

each x

40
Image for BEARING 3RD MOTION G/BOX
BEARING 3RD MOTION G/BOX

Product Code: 22B313

£9.35

£7.79

each x

41
Image for SHIM .002 NON O/D MGB G/BOX
SHIM .002 NON O/D MGB G/BOX

Product Code: 22B317

Quantity - as required

£3.90

£3.25

each x

42
Image for Housing bearing non overdrive MGB
Housing bearing non overdrive MGB

Product Code: 22B551

£24.00

£20.00

each x

43
Image for PEG - HOUSING - NLA
PEG - HOUSING - NLA

Product Code: 22B552

46
Image for WOODRUFF KEY
WOODRUFF KEY

Product Code: WKN304

£0.66

£0.55

each x

47
Image for LOCKWASHER M/SHAFT MGB 4 SYN
LOCKWASHER M/SHAFT MGB 4 SYN

Product Code: 22H773

48
Image for NUT - MAINSHAFT - NLA
NUT - MAINSHAFT - NLA

Product Code: 22H772L

50
Image for BRG GEARBOX MGA MGB 3 SYNC
BRG GEARBOX MGA MGB 3 SYNC

Product Code: 503791

£16.67

£13.89

each x

51
Image for SHIM 0.002 O/D GEARBOX
SHIM 0.002 O/D GEARBOX

Product Code: 22B464

Quantity - as required

£1.76

£1.47

each x

51
Image for SHIM .005 O/D GEARBOX MGB
SHIM .005 O/D GEARBOX MGB

Product Code: 22B465

Quantity - as required

£1.19

£0.99

each x

51
Image for SHIM 0.010 O/D G/BOX MGC
SHIM 0.010 O/D G/BOX MGC

Product Code: 22B466

Quantity - as required

£3.46

£2.88

each x

52
Image for CIRCLIP = GEARBOX
CIRCLIP = GEARBOX

Product Code: 22B299

52
Image for CIRCLIP - GEARBOX
CIRCLIP - GEARBOX

Product Code: 22B300

52
Image for CIRCLIP - GEARBOX
CIRCLIP - GEARBOX

Product Code: 22B463

53
Image for OIL SEAL 4 SYNC NON-OD MGB
OIL SEAL 4 SYNC NON-OD MGB

Product Code: 13H9213

£4.44

£3.70

each x

55
Image for LOCK WASHER 3RD M/SHAFT MGC
LOCK WASHER 3RD M/SHAFT MGC

Product Code: 22B270L

£3.42

£2.85

each x

56
Image for NUT =-3RD MOTION MGC
NUT =-3RD MOTION MGC

Product Code: 22B269

£5.70

£4.75

each x

58
Image for USE 6K830
USE 6K830

Product Code: 6K777

Has been superseded by
Image for BEARING GEARBOX SHAFT MGB
BEARING GEARBOX SHAFT MGB

Product Code: 6K830

£14.46

£12.05

each x

59
Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B691

60
Image for THRUST WASHER 0.133-5 REAR MGB
THRUST WASHER 0.133-5 REAR MGB

Product Code: 22B692

61
Image for M/SHAFT NEW MGB/C 4SYNCRO
M/SHAFT NEW MGB/C 4SYNCRO

Product Code: 8G3032L

62
Image for BEARING - 3RD MOTION SHAFT - NLA
BEARING - 3RD MOTION SHAFT - NLA

Product Code: 13H7268

63
Image for SHIM 0.002 O/D GEARBOX
SHIM 0.002 O/D GEARBOX

Product Code: 22B464

Quantity - as required

£1.76

£1.47

each x

63
Image for SHIM .005 O/D GEARBOX MGB
SHIM .005 O/D GEARBOX MGB

Product Code: 22B465

Quantity - as required

£1.19

£0.99

each x

63
Image for SHIM 0.010 O/D G/BOX MGC
SHIM 0.010 O/D G/BOX MGC

Product Code: 22B466

Quantity - as required

£3.46

£2.88

each x

64
Image for ADAPTOR HOUSING OVERDRIVE/BOX
ADAPTOR HOUSING OVERDRIVE/BOX

Product Code: 22B588L

£54.00

£45.00

each x

65
Image for PEG - HOUSING - NLA
PEG - HOUSING - NLA

Product Code: 22B552

66
Image for TUBE SPACER
TUBE SPACER

Product Code: 22B425

£4.02

£3.35

each x

67
Image for LOCKING WASHER - NLA
LOCKING WASHER - NLA

Product Code: 22B516

68
Image for NUT MGB GEARBOX
NUT MGB GEARBOX

Product Code: 22B515

£9.30

£7.75

each x

69
Image for LOCKWASHER M/SHAFT MGB 4 SYN
LOCKWASHER M/SHAFT MGB 4 SYN

Product Code: 22H773

70
Image for NUT - MAINSHAFT - NLA
NUT - MAINSHAFT - NLA

Product Code: 22H772L

71
Image for COMPETITON O/DRIVE
COMPETITON O/DRIVE

Product Code: 22B687CE

£450.00

£375.00

each x

71
Image for OVERDRIVE RECON V8 & C
OVERDRIVE RECON V8 & C

Product Code: 22B687E

£463.20

£386.00

each x

73
Image for GAITER  CLUTCH ARM MGC & V8
GAITER CLUTCH ARM MGC & V8

Product Code: 22B450

£12.20

£10.17

each x

Products not on diagram

Image for MGC KICKDOWN CABLE
MGC KICKDOWN CABLE

Product Code: 27H8595

£24.90

£20.75

each x

Image for CAP - SPRING RETAINING - NLA
CAP - SPRING RETAINING - NLA

Product Code: 22A85

Image for USE 22B317
USE 22B317

Product Code: 22B318

Has been superseded by
Image for SHIM .002 NON O/D MGB G/BOX
SHIM .002 NON O/D MGB G/BOX

Product Code: 22B317

£3.90

£3.25

each x

Image for M/SHAFT MGB 4 SYN G/BOX USED
M/SHAFT MGB 4 SYN G/BOX USED

Product Code: 22B373U

£150.00

£125.00

each x

Image for FRONT COVER 4-SYNC GEARBOX B C
FRONT COVER 4-SYNC GEARBOX B C

Product Code: 22B384

Image for MGC O/D G/BOX INC 0/D
MGC O/D G/BOX INC 0/D

Product Code: 22B411R

£780.00

£650.00

each x

Image for FIRST MOTION SHAFT MGB MGC
FIRST MOTION SHAFT MGB MGC

Product Code: 22B556

Image for USE 22B687E OR 22B687CE
USE 22B687E OR 22B687CE

Product Code: 22B687N

Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B691L

Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B693L

Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 22B694L
