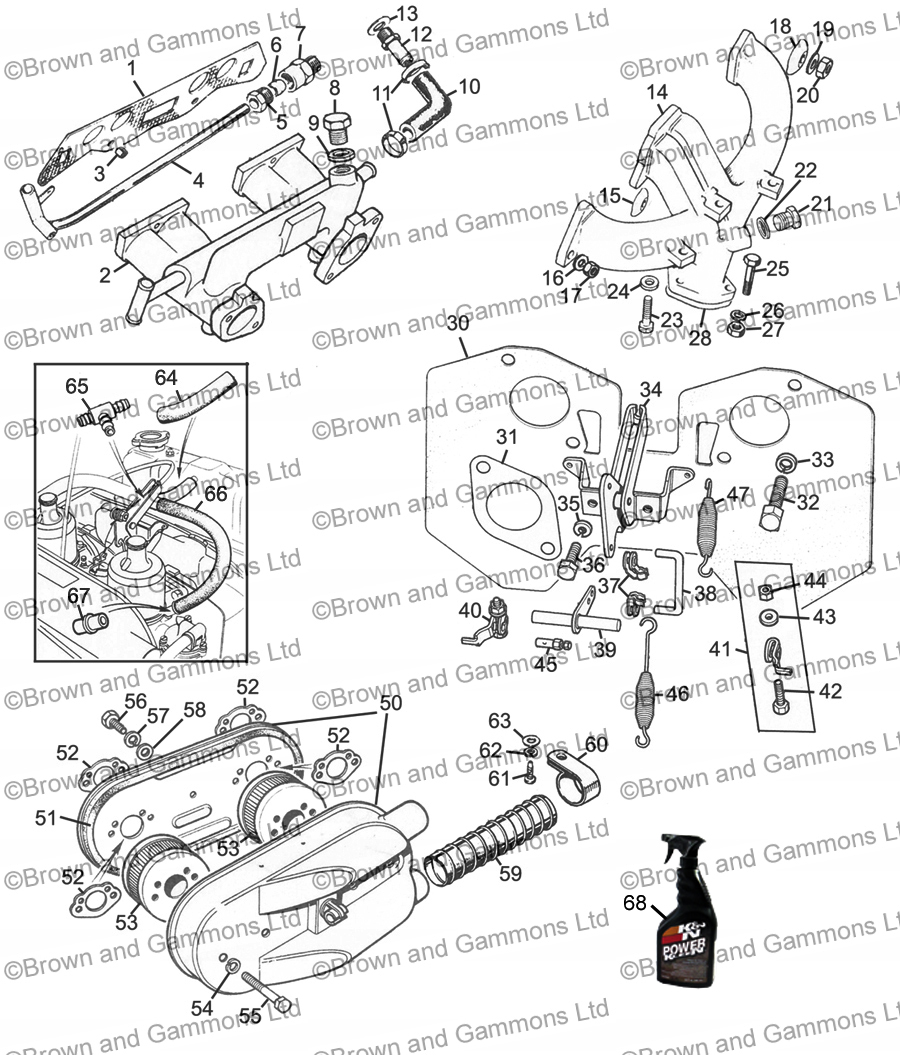

1500 Manifolds Heatshield & Air cleaner

Image for 1500 Manifolds Heatshield & Air cleaner

Item

Description

Action

1
Image for GASKET MANIFOLD MIDGET 1500
GASKET MANIFOLD MIDGET 1500

Product Code: AJM648

£2.76

£2.30

each x

2
Image for INLET MANIFOLD 1500 MIDGET
INLET MANIFOLD 1500 MIDGET

Product Code: RKC723

£149.06

£124.22

each x

3
Image for DOWL MANIFOLD TO HEAD MID1500
DOWL MANIFOLD TO HEAD MID1500

Product Code: DS2512

£0.24

£0.20

each x

4
Image for PIPE PUMP MANIFOLD MIDG 1500
PIPE PUMP MANIFOLD MIDG 1500

Product Code: 212935

£17.10

£14.25

each x

5
Image for TUBE NUT MIDGET 1500
TUBE NUT MIDGET 1500

Product Code: 101302

£2.04

£1.70

each x

6
Image for OLIVE FOR 1/2 INCH TUBE
OLIVE FOR 1/2 INCH TUBE

Product Code: TL11

£1.25

£1.04

each x

7
Image for ADAPTOR WATER PIPE
ADAPTOR WATER PIPE

Product Code: 101343

£4.60

£3.83

each x

8
Image for MANIFOLD PLUG MIDGET 1500
MANIFOLD PLUG MIDGET 1500

Product Code: 122132

£3.06

£2.55

each x

9
Image for FIBRE WASHER
FIBRE WASHER

Product Code: AAA836

£0.46

£0.38

each x

10
Image for HOSE FRONT MANIFOLD MID 1500
HOSE FRONT MANIFOLD MID 1500

Product Code: 149699

£5.65

£4.71

each x

11
Image for HOSE CLIP 5/8 INCH - 7/8 INCH
HOSE CLIP 5/8 INCH - 7/8 INCH

Product Code: GHC507

£0.72

£0.60

each x

13
Image for FIBRE WASHER FUEL PUMP/CARB
FIBRE WASHER FUEL PUMP/CARB

Product Code: AUC2141

£0.48

£0.40

each x

14
Image for MANIFOLD - EXHAUST - MIDGET 1500 - NLA
15
Image for EXHAUST MANIFOLD YOKE MID1500
EXHAUST MANIFOLD YOKE MID1500

Product Code: 58258

On Upper mounting studs

£3.54

£2.95

each x

16
Image for PLAIN WASHER 3/8 INCH (PACK 10)
PLAIN WASHER 3/8 INCH (PACK 10)

Product Code: GHF302

On upper & lower outer mounting studs

£0.12

£0.10

Pack of 10 x

17
Image for MANIFOLD NUT MIDGET 1500
MANIFOLD NUT MIDGET 1500

Product Code: 100498

On upper & lower outer mounting studs

£1.18

£0.98

each x

18
Image for MANIFOLD CLAMP MEDIUM
MANIFOLD CLAMP MEDIUM

Product Code: 137845

On lower inner mounting studs

£3.54

£2.95

each x

19
Image for PLAIN WASHER 3/8 INCH (PACK 10)
PLAIN WASHER 3/8 INCH (PACK 10)

Product Code: GHF302

On lower inner mounting studs

£0.12

£0.10

Pack of 10 x

20
Image for MANIFOLD NUT MIDGET
MANIFOLD NUT MIDGET

Product Code: CHA360

On lower inner mounting studs

£1.62

£1.35

each x

22
Image for COPPER WASHER
COPPER WASHER

Product Code: 6K431

£0.78

£0.65

each x

23
Image for BOLT 5/16 INCH UNC X 1.3/4
BOLT 5/16 INCH UNC X 1.3/4

Product Code: BH505141

£0.72

£0.60

each x

24
Image for SPRING WASHER 5/16 inch (PACK 10)
SPRING WASHER 5/16 inch (PACK 10)

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

24
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

25
Image for BOLT 3/8 INCH UNF X 1.5 INCH
BOLT 3/8 INCH UNF X 1.5 INCH

Product Code: GHF106

£0.30

£0.25

each x

26
Image for SPRING WASHER  3/8 INCH (PACK 10)
SPRING WASHER 3/8 INCH (PACK 10)

Product Code: GHF333

£0.07

£0.06

Pack of 10 x

27
Image for NUT EXHAUST FLANGE MID 1500
NUT EXHAUST FLANGE MID 1500

Product Code: CHA471

£0.66

£0.55

each x

28
Image for EXHAUST FLANGE GASKET MIDGET
EXHAUST FLANGE GASKET MIDGET

Product Code: GEG742

£5.10

£4.25

each x

30
Image for HEATSHIELD CARBS MIDGET 1500
HEATSHIELD CARBS MIDGET 1500

Product Code: UKC8372

£18.60

£15.50

each x

30
Image for HEATSHIELD STAINLESS STEEL MIDGET 1500
HEATSHIELD STAINLESS STEEL MIDGET 1500

Product Code: UKC8372SS

£21.90

£18.25

each x

31
Image for GASKET CARBS MIDGET 1500
GASKET CARBS MIDGET 1500

Product Code: UKC2992

£0.94

£0.78

each x

32
Image for SET SCREW 5/16 INCH UNC X 1.25 INCH
SET SCREW 5/16 INCH UNC X 1.25 INCH

Product Code: SH505101

Has been superseded by
Image for 5/16th UNC x 1 1/4 stainless steel HEX screw

£0.42

£0.35

each x

32
Image for 5/16th UNC x 1 1/4 stainless steel HEX screw

£0.42

£0.35

each x

33
Image for SPRING WASHER 5/16 inch (PACK 10)
SPRING WASHER 5/16 inch (PACK 10)

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

33
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

34
Image for THROTTLE LINK ASSY MIDGET - NLA
THROTTLE LINK ASSY MIDGET - NLA

Product Code: UKC5374

35
Image for SPRING WASHER 1/4 INCH (PACK 10)
SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08

Pack of 10 x

35
Image for S/STEEL SPRING WASHER 1/4 INCH (RECT)
S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10

each x

36
Image for SET SCREW 1/4 INCH UNC X 0.625 INCH
SET SCREW 1/4 INCH UNC X 0.625 INCH

Product Code: SH504051

£0.30

£0.25

each x

37
Image for CLIP CARB LEVER MIDGET 1500
CLIP CARB LEVER MIDGET 1500

Product Code: 153957

£1.96

£1.63

each x

39
Image for ROD & LEVER - NLA
ROD & LEVER - NLA

Product Code: UKC3009

40
Image for LEVER & PIN CARB FRONT
LEVER & PIN CARB FRONT

Product Code: AUE586

£2.36

£1.97

each x

41
Image for LEVER & PIN CARB REAR
LEVER & PIN CARB REAR

Product Code: AUE587

£2.36

£1.97

each x

42
Image for BOLT THROTTLE LEVER
BOLT THROTTLE LEVER

Product Code: AUC2694

£0.54

£0.45

each x

43
Image for PLAIN WASHER CARB LINKAGE
PLAIN WASHER CARB LINKAGE

Product Code: AUC8396

£0.36

£0.30

each x

44
Image for Nut 2BA
Nut 2BA

Product Code: AJD8012Z

£0.12

£0.10

each x

45
Image for TRUNNION AND SCREW
TRUNNION AND SCREW

Product Code: AUE34

£1.98

£1.65

each x

46
Image for SPRG THROTTLE RETURN MID1500
SPRG THROTTLE RETURN MID1500

Product Code: 153959

£0.92

£0.77

each x

47
Image for RETURN SPRG CARB 2.3/8 MID1500
RETURN SPRG CARB 2.3/8 MID1500

Product Code: 145197

£2.04

£1.70

each x

50
Image for AIR FILTER ASSEMBLY MID 1500 - NLA
AIR FILTER ASSEMBLY MID 1500 - NLA

Product Code: TKC1570

51
Image for SEAL AIR FILTER 1500 MIDGET
SEAL AIR FILTER 1500 MIDGET

Product Code: 141648

£1.07

£0.89

each x

52
Image for AIR FILTER GASKET 1 1/2 SU
AIR FILTER GASKET 1 1/2 SU

Product Code: 12G2125

£0.34

£0.28

each x

52
Image for AIR FILTER GASKET 1 1/2 SU
AIR FILTER GASKET 1 1/2 SU

Product Code: 12G2125

£0.34

£0.28

each x

52
Image for AIR FILTER GASKET 1 1/2 SU
AIR FILTER GASKET 1 1/2 SU

Product Code: 12G2125

£0.34

£0.28

each x

53
Image for AIR FILTER MIDGET 1500 HS4
AIR FILTER MIDGET 1500 HS4

Product Code: GFE1063

£6.78

£5.65

each x

53
Image for AIR FILTER MIDGET 1500 HS4
AIR FILTER MIDGET 1500 HS4

Product Code: GFE1063

£6.78

£5.65

each x

54
Image for SPRING WASHER 5/16 inch (PACK 10)
SPRING WASHER 5/16 inch (PACK 10)

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

54
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

55
Image for BOLT 5/16 UNC x 2.1/4 INCH
BOLT 5/16 UNC x 2.1/4 INCH

Product Code: BH505181

£0.60

£0.50

each x

56
Image for SCREW 1/4 INCH UNF x 0.5 INCH
SCREW 1/4 INCH UNF x 0.5 INCH

Product Code: SH604041

£0.16

£0.13

each x

56
Image for Set Screw 1/4 UNF x 1/2 inch Stainless Steel

£0.18

£0.15

each x

57
Image for SPRING WASHER 1/4 INCH (PACK 10)
SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08

Pack of 10 x

57
Image for S/STEEL SPRING WASHER 1/4 INCH (RECT)
S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10

each x

58
Image for PLAIN WASHER 1/4 INCH (PACK OF 10)
PLAIN WASHER 1/4 INCH (PACK OF 10)

Product Code: GHF300

£0.06

£0.05

Pack of 10 x

59
Image for AIR HOSE
AIR HOSE

Product Code: 616012

23.5 inches long

£10.20

£8.50

each x

60
Image for FUEL FILTER CLIP MGB V8
FUEL FILTER CLIP MGB V8

Product Code: 603185

£2.56

£2.13

each x

62
Image for SPRING WASHER 1/4 INCH (PACK 10)
SPRING WASHER 1/4 INCH (PACK 10)

Product Code: GHF331

£0.10

£0.08

Pack of 10 x

62
Image for S/STEEL SPRING WASHER 1/4 INCH (RECT)
S/STEEL SPRING WASHER 1/4 INCH (RECT)

Product Code: GHF331SS

£0.12

£0.10

each x

63
Image for PLAIN WASHER 1/4 INCH (PACK OF 10)
PLAIN WASHER 1/4 INCH (PACK OF 10)

Product Code: GHF300

£0.06

£0.05

Pack of 10 x

64
Image for HOSE 'T' PIECE BREATHER MID15
HOSE 'T' PIECE BREATHER MID15

Product Code: 154220

£1.68

£1.40

each x

65
Image for 'T' PIECE BREATHER MID 1500
'T' PIECE BREATHER MID 1500

Product Code: UAM1600

£5.21

£4.34

each x

66
Image for BREATHER HOSE MIDGET 1500
BREATHER HOSE MIDGET 1500

Product Code: 154935

£3.90

£3.25

each x

67
Image for ADAPTOR HOSE CARB MID 1500
ADAPTOR HOSE CARB MID 1500

Product Code: 154934

£1.57

£1.31

each x

Products not on diagram

Image for K&N AIR FILTER CLEANER
K&N AIR FILTER CLEANER

Product Code: GAC1034

£11.76

£9.80

each x
