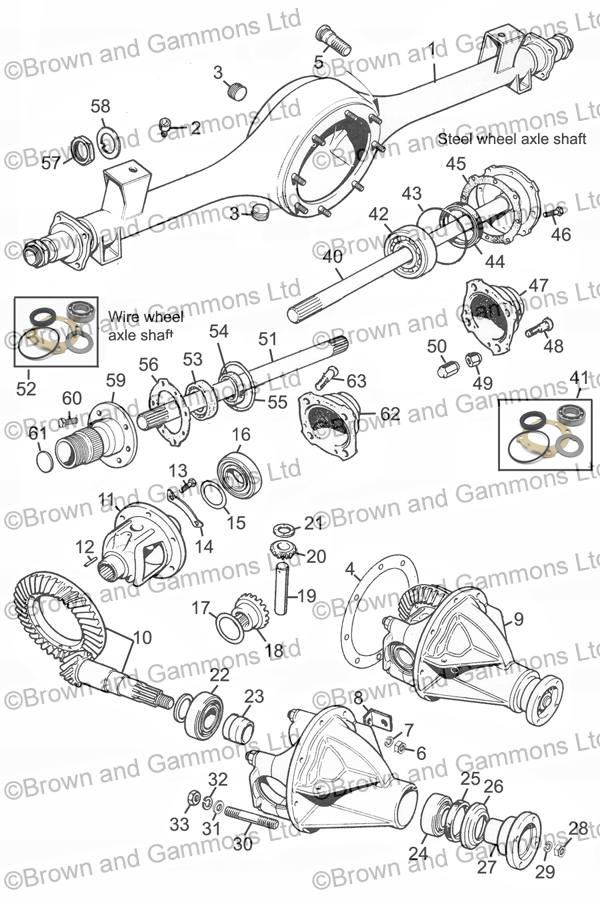

Rear Axle

Image for Rear Axle

Item

Description

Action

1
Image for AXLE CASE - STEEL WHEELS - NLA
AXLE CASE - STEEL WHEELS - NLA

Product Code: DAM2483

2
Image for BREATHER AXLE & GEARBOX B/A/M
BREATHER AXLE & GEARBOX B/A/M

Product Code: 21H6060

£3.72

£3.10

each x

3
Image for DRAIN PLUG GEARBOX MGB MGA
DRAIN PLUG GEARBOX MGB MGA

Product Code: 6K499

£2.00

£1.67

each x

3
Image for DRAIN PLUG GEARBOX MGB MGA
DRAIN PLUG GEARBOX MGB MGA

Product Code: 6K499

£2.00

£1.67

each x

4
Image for GASKET DIFF MIDGET
GASKET DIFF MIDGET

Product Code: 2A7027

£1.50

£1.25

each x

5
Image for STUD DIFF MIDGET  MGB. MGA
STUD DIFF MIDGET MGB. MGA

Product Code: 2A7226

6
Image for NUT 5/16 inch UNF (PACK 10)
NUT 5/16 inch UNF (PACK 10)

Product Code: GHF201

£0.12

£0.10

Pack of 10 x

6
Image for S/STEEL NUT 5/16 INCH UNF
S/STEEL NUT 5/16 INCH UNF

Product Code: GHF201SS

£0.20

£0.17

each x

7
Image for SPRING WASHER 5/16 inch
SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

7
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

9
Image for 3.9:1 DIFF NEW C W PINION (COU)
3.9:1 DIFF NEW C W PINION (COU)

Product Code: BTA1222

£592.80

£494.00

each x

9
Image for RECON DIFF MIDGET 3.9:1
RECON DIFF MIDGET 3.9:1

Product Code: BTA1222E

£303.78

£253.15

each x

9
Image for DIFF RECON 3.9:1 NEW CWP **COU**
DIFF RECON 3.9:1 NEW CWP **COU**

Product Code: BTA1222ENEWCWP

£680.16

£566.80

each x

9
Image for Plate type LSD Midget diff
Plate type LSD Midget diff

Product Code: BTA1226PT

£630.00

£525.00

each x

9
Image for QUAIFE TORQUE BIASING DIFF MID
QUAIFE TORQUE BIASING DIFF MID

Product Code: BTA1226Q

£822.00

£685.00

each x

9
Image for RECON DIFF 4.2:1 MID **100**
RECON DIFF 4.2:1 MID **100**

Product Code: BTA550E

£329.38

£274.48

each x

9
Image for EX DIFF ASSEMBLY 3.7 *SUR100*
EX DIFF ASSEMBLY 3.7 *SUR100*

Product Code: BTA551E

£367.20

£306.00

each x

10
Image for C.W.PINION 4.55:1 MIDGET
C.W.PINION 4.55:1 MIDGET

Product Code: 8G7129

£300.00

£250.00

each x

10
Image for 3.9:1 CROWNWHEEL & PINION NEW
3.9:1 CROWNWHEEL & PINION NEW

Product Code: BTA1223

£349.96

£291.63

each x

10
Image for C.W.& P. MIDGET 3.7:1
C.W.& P. MIDGET 3.7:1

Product Code: BTA535

£406.00

£338.33

each x

10
Image for 4.22:1 CROWNWHEEL & PINION
4.22:1 CROWNWHEEL & PINION

Product Code: BTA539

£390.36

£325.30

each x

11
Image for CAGE DIFFERENTIAL - NLA
CAGE DIFFERENTIAL - NLA

Product Code: ATA7036

12
Image for PEG - LOCKING CROSS PIN - NLA
PEG - LOCKING CROSS PIN - NLA

Product Code: 6K631

13
Image for BOLT CROWN WHEEL MGB MGA
BOLT CROWN WHEEL MGB MGA

Product Code: ATA7043

£1.02

£0.85

each x

14
Image for LOCK WASHER DIFF CAGE MIDGET
LOCK WASHER DIFF CAGE MIDGET

Product Code: ATA7044

£0.90

£0.75

each x

15
Image for SHIM .010 DIFF BEARING MIDGET
SHIM .010 DIFF BEARING MIDGET

Product Code: 2A7271

£0.86

£0.72

each x

15
Image for SHIM 0.004
SHIM 0.004

Product Code: 2K7778

£0.86

£0.72

each x

15
Image for SHIM 0.002
SHIM 0.002

Product Code: 2K7779

£0.82

£0.68

each x

15
Image for SHIM .003
SHIM .003

Product Code: ATA7269

£0.86

£0.72

each x

16
Image for BEARING CROWN WHEEL TA-TF MID
BEARING CROWN WHEEL TA-TF MID

Product Code: 7207

£21.00

£17.50

each x

17
Image for THRUST WASHER DIFF WHEEL MID
THRUST WASHER DIFF WHEEL MID

Product Code: ATA7039

£2.10

£1.75

each x

18
Image for SUN WHEEL - NLA
SUN WHEEL - NLA

Product Code: ATA7037

19
Image for DIFF PIN MIDGET
DIFF PIN MIDGET

Product Code: 2A7016

£18.42

£15.35

each x

20
Image for DIFF PINION WHEEL MIDGET
DIFF PINION WHEEL MIDGET

Product Code: 2A7015

£18.41

£15.34

each x

21
Image for THRUST WASHER DIFF PINION MID
THRUST WASHER DIFF PINION MID

Product Code: 2A7062

£4.14

£3.45

each x

22
Image for PINION BEARING INNER MIDGET
PINION BEARING INNER MIDGET

Product Code: ATA7166A

£23.95

£19.96

each x

22
Image for USE ATA7166A
USE ATA7166A

Product Code: BTA7166A

23
Image for COLLAPSABLE SPACER
COLLAPSABLE SPACER

Product Code: BTA532

£8.86

£7.38

each x

24
Image for BEARING PINION MIDGET
BEARING PINION MIDGET

Product Code: BTB440

£12.04

£10.03

each x

25
Image for OIL SEAL DIFF PINION
OIL SEAL DIFF PINION

Product Code: 88G320

£2.94

£2.45

each x

26
Image for DUST COVER - NO LONGER AVAILABLE
DUST COVER - NO LONGER AVAILABLE

Product Code: 1G7439

27
Image for FLANGE - NLA
FLANGE - NLA

Product Code: ATA7056

28
Image for NUT PINION FLANGE MGB A T TYPE
NUT PINION FLANGE MGB A T TYPE

Product Code: FNZ612

£2.40

£2.00

each x

29
Image for SPRING WASHER 3/4 INCH MGA MGB T
SPRING WASHER 3/4 INCH MGA MGB T

Product Code: WL600121

£0.92

£0.77

each x

30
Image for STUD DIFF ASSY MGB MIDGET MGA
STUD DIFF ASSY MGB MIDGET MGA

Product Code: 51K886

£3.54

£2.95

each x

31
Image for PLAIN WASHER 7/16 INCH
PLAIN WASHER 7/16 INCH

Product Code: GHF303

£0.07

£0.06

each x

32
Image for SPRING WASHER 7/16 INCH
SPRING WASHER 7/16 INCH

Product Code: GHF334

£0.18

£0.15

each x

33
Image for NUT 7/16 INCH UNF
NUT 7/16 INCH UNF

Product Code: GHF203

£0.26

£0.22

each x

40
Image for HALF SHAFT DISC WHEEL MIDGET
HALF SHAFT DISC WHEEL MIDGET

Product Code: BTA806

£102.07

£85.06

each x

40
Image for HALF SHAFT DISC WHEEL NITRIDED
HALF SHAFT DISC WHEEL NITRIDED

Product Code: BTA806C

£132.00

£110.00

each x

40
Image for HALF SHAFT DISC WHEEL USED
HALF SHAFT DISC WHEEL USED

Product Code: BTA806U

£71.94

£59.95

each x

41
Image for HUB BEARING KIT REAR MIDGET
HUB BEARING KIT REAR MIDGET

Product Code: GHK1143

£11.94

£9.95

each x

42
Image for BEARING REAR HUB MIDGET
BEARING REAR HUB MIDGET

Product Code: GHB130

£11.58

£9.65

each x

43
Image for 'O' RING REAR HUB MIDGET
'O' RING REAR HUB MIDGET

Product Code: ATA7225

£0.95

£0.79

each x

44
Image for OIL SEAL REAR HUB MIDGET
OIL SEAL REAR HUB MIDGET

Product Code: GHS147

£3.54

£2.95

each x

45
Image for GASKET REAR AXLE MIDGET
GASKET REAR AXLE MIDGET

Product Code: GFG110

£0.78

£0.65

each x

46
Image for Screw 1/4  inch x 5/8  inch c/sunk
Screw 1/4 inch x 5/8 inch c/sunk

Product Code: SF604051

£0.42

£0.35

each x

47
Image for HUB - STEEL WHEELS - MIDGET - NLA
HUB - STEEL WHEELS - MIDGET - NLA

Product Code: 2A7087

48
Image for STUD ROAD WHEEL MIDGET
STUD ROAD WHEEL MIDGET

Product Code: 2A7089

£3.54

£2.95

each x

49
Image for WHEEL NUT MIDGET
WHEEL NUT MIDGET

Product Code: 88G322

£0.67

£0.56

each x

49
Image for WHEEL NUT 3/8 UNF CONICAL
WHEEL NUT 3/8 UNF CONICAL

Product Code: 88G577

£1.82

£1.52

each x

50
Image for WHEEL NUT ROYSTLE MIDGET
WHEEL NUT ROYSTLE MIDGET

Product Code: AHA8785

£1.68

£1.40

each x

50
Image for WHEEL NUT MG With MG logo
WHEEL NUT MG With MG logo

Product Code: AHA8785A

£2.75

£2.29

each x

51
Image for HALFSHAFT MIDGET WIRE WHEEL
HALFSHAFT MIDGET WIRE WHEEL

Product Code: BTA807

£95.99

£79.99

each x

51
Image for HALFSHAFT NITRIDED MIDG W/WHL
HALFSHAFT NITRIDED MIDG W/WHL

Product Code: BTA807C

£111.00

£92.50

each x

51
Image for HALFSHAFT MIDGET WIRE WHEEL
HALFSHAFT MIDGET WIRE WHEEL

Product Code: BTA807

£95.99

£79.99

each x

51
Image for HALFSHAFT NITRIDED MIDG W/WHL
HALFSHAFT NITRIDED MIDG W/WHL

Product Code: BTA807C

£111.00

£92.50

each x

52
Image for HUB BEARING KIT REAR MIDGET
HUB BEARING KIT REAR MIDGET

Product Code: GHK1143

£11.94

£9.95

each x

53
Image for BEARING REAR HUB MIDGET
BEARING REAR HUB MIDGET

Product Code: GHB130

£11.58

£9.65

each x

54
Image for OIL SEAL REAR HUB MIDGET
OIL SEAL REAR HUB MIDGET

Product Code: GHS147

£3.54

£2.95

each x

55
Image for 'O' RING REAR HUB MIDGET
'O' RING REAR HUB MIDGET

Product Code: ATA7225

£0.95

£0.79

each x

56
Image for GASKET REAR AXLE MIDGET
GASKET REAR AXLE MIDGET

Product Code: GFG110

£0.78

£0.65

each x

57
Image for HUB NUT L/H MID/1ST MO MGA
HUB NUT L/H MID/1ST MO MGA

Product Code: 1G3584

£8.10

£6.75

each x

57
Image for REAR HUB NUT RH THREAD MID
REAR HUB NUT RH THREAD MID

Product Code: 2A7103

£5.28

£4.40

each x

58
Image for LOCK WASHER MIDGET REAR HUB
LOCK WASHER MIDGET REAR HUB

Product Code: 2A7250

£1.06

£0.88

each x

59
Image for REAR HUB RH MIDGET
REAR HUB RH MIDGET

Product Code: BTA688

£68.94

£57.45

each x

59
Image for REAR HUB LH MIDGET
REAR HUB LH MIDGET

Product Code: BTA689

£68.94

£57.45

each x

60
Image for Screw 1/4  inch x 5/8  inch c/sunk
Screw 1/4 inch x 5/8 inch c/sunk

Product Code: SF604051

£0.42

£0.35

each x

61
Image for Core plug dish type MGA hub W/W 1" 5/16

£1.14

£0.95

each x

62
Image for HUB ASSY - WIRE WHEEL MID - NLA
HUB ASSY - WIRE WHEEL MID - NLA

Product Code: BTA490

63
Image for STUD REAR WIRE WHEELS
STUD REAR WIRE WHEELS

Product Code: BTA492

£3.48

£2.90

each x

Products not on diagram

Image for HUB END COVER
HUB END COVER

Product Code: 102689

£5.40

£4.50

each x

Image for Box spanner Midget rear hub nut
Box spanner Midget rear hub nut

Product Code: GAC1501

£32.86

£27.38

each x

Image for OIL SEAL
OIL SEAL

Product Code: GHS227

£2.71

£2.26

each x
