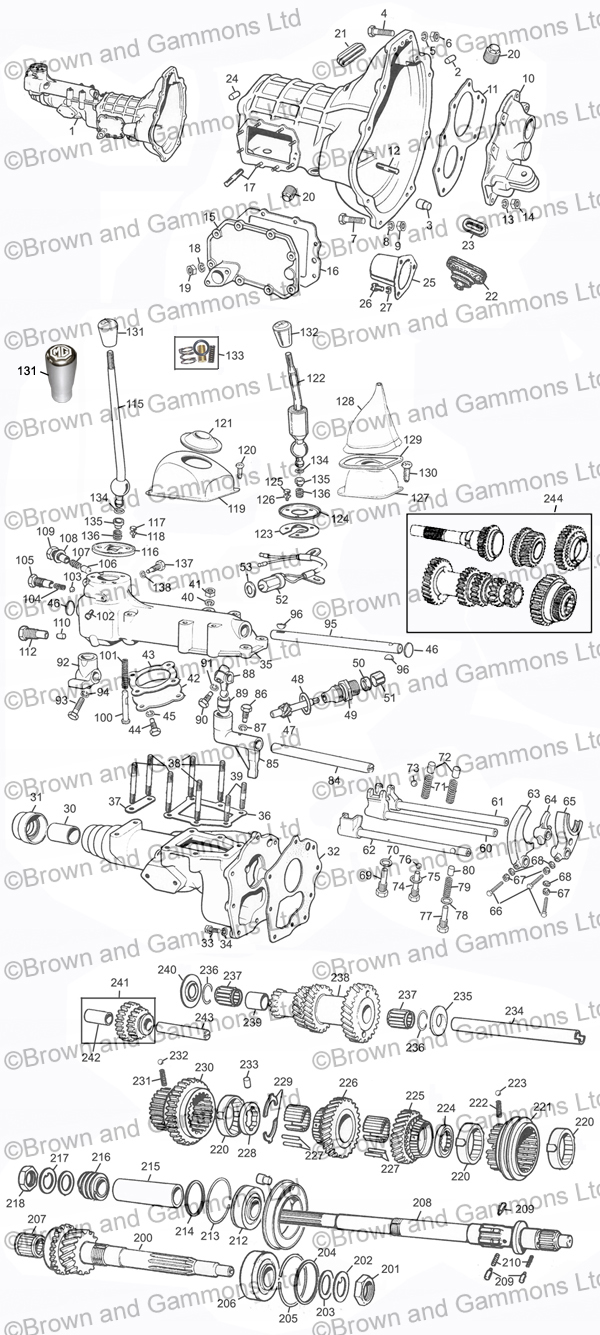

Gearbox 1275

Image for Gearbox 1275

Item

Description

Action

1
Image for GEARBOX MIDGET 1275 EXCHANGE*SUR150**
GEARBOX MIDGET 1275 EXCHANGE*SUR150**

Product Code: GSG1115E

£714.00

£595.00

each x

6
Image for REVERSING FORK
REVERSING FORK

Product Code: 2A3284

£16.90

£14.08

each x

8
Image for SCREW LOCATING FORK MIDGET
SCREW LOCATING FORK MIDGET

Product Code: 2A3492

£2.32

£1.93

each x

13
Image for BALL BEARING
BALL BEARING

Product Code: BLS107

£0.36

£0.30

each x

13
Image for BALL BEARING
BALL BEARING

Product Code: BLS107

£0.36

£0.30

each x

24
Image for BUSH FOR 22G1114 GEAR MID
BUSH FOR 22G1114 GEAR MID

Product Code: 2A3282

£1.90

£1.58

each x

26
Image for REVERSE SHAFT - 1275 MID - N LA
REVERSE SHAFT - 1275 MID - N LA

Product Code: 88G216

27
Image for BEARING SPIGOT 1ST/3RD SHAFTS
BEARING SPIGOT 1ST/3RD SHAFTS

Product Code: CHM172

£4.31

£3.59

each x

29
Image for BRG 1ST MTN SHAFT 1275 MID
BRG 1ST MTN SHAFT 1275 MID

Product Code: 2A3245

£13.08

£10.90

each x

30
Image for SPRING RING GEARBOX MGB MID
SPRING RING GEARBOX MGB MID

Product Code: 6K558

31
Image for SHIM 0.010 INCH MIDGET GEARBOX
SHIM 0.010 INCH MIDGET GEARBOX

Product Code: 2K8739

£1.51

£1.26

each x

32
Image for LOCKTAB - 3RD MOTION
LOCKTAB - 3RD MOTION

Product Code: 2A3035

£3.76

£3.13

each x

33
Image for LOCK NUT GEARBOX MIDGET
LOCK NUT GEARBOX MIDGET

Product Code: 2K6677

£0.60

£0.50

each x

34
Image for LOCK NUT GEARBOX MIDGET
LOCK NUT GEARBOX MIDGET

Product Code: 2K6677

£0.60

£0.50

each x

35
Image for SPEEDO DRIVE GEAR
SPEEDO DRIVE GEAR

Product Code: 2A3371

£9.60

£8.00

each x

37
Image for SHIM 0.004 INCH MIDGET GEARBOX
SHIM 0.004 INCH MIDGET GEARBOX

Product Code: 2K8737

£1.28

£1.07

each x

37
Image for SHIM 0.006 INCH MIDGET GEARBOX
SHIM 0.006 INCH MIDGET GEARBOX

Product Code: 2K8738

£1.32

£1.10

each x

37
Image for SHIM 0.010 INCH MIDGET GEARBOX
SHIM 0.010 INCH MIDGET GEARBOX

Product Code: 2K8739

£1.51

£1.26

each x

38
Image for SPRING RING GEARBOX MGB MID
SPRING RING GEARBOX MGB MID

Product Code: 6K558

40
Image for THRUST WASHER - NLA
THRUST WASHER - NLA

Product Code: 2A3024

40
Image for THRUST WASHER 0.125 INCH - 0.126 INCH

£6.30

£5.25

each x

40
Image for THRUST WASHER 0.127 - 0.128 INCH
THRUST WASHER 0.127 - 0.128 INCH

Product Code: 2A3026

£8.64

£7.20

each x

40
Image for THRUST WASHER 0.130 to 0.131 INCH
THRUST WASHER 0.130 to 0.131 INCH

Product Code: 2A3027

£6.46

£5.38

each x

41
Image for BEARING LAY SHAFT 1275 MIDG
BEARING LAY SHAFT 1275 MIDG

Product Code: 88G396

£4.56

£3.80

each x

41
Image for BEARING LAY SHAFT 1275 MIDG
BEARING LAY SHAFT 1275 MIDG

Product Code: 88G396

£4.56

£3.80

each x

41
Image for Layshaft Bearing OE Spec Midget 1275
Layshaft Bearing OE Spec Midget 1275

Product Code: 88G396OE

£11.94

£9.95

each x

47
Image for SPEEDO PINION 58-74
SPEEDO PINION 58-74

Product Code: 2A3420

£151.13

£125.94

each x

49
Image for SIDE COVER - NLA
SIDE COVER - NLA

Product Code: 88G214

50
Image for GASKET SIDE GEARBOX MIDG 1275
GASKET SIDE GEARBOX MIDG 1275

Product Code: 2A3286

£0.72

£0.60

each x

51
Image for NO LONGER AVAILABLE
NO LONGER AVAILABLE

Product Code: 2A3340

52
Image for GASKET REMOTE GEARBOX MIDG1275
GASKET REMOTE GEARBOX MIDG1275

Product Code: 2A3341

£1.20

£1.00

each x

53
Image for GASKET REMOTE GEARBOX MIDG1275
GASKET REMOTE GEARBOX MIDG1275

Product Code: 2A3345

£0.50

£0.42

each x

54
Image for OIL SEAL GEARBOX MIDGET
OIL SEAL GEARBOX MIDGET

Product Code: 2A3061

£4.74

£3.95

each x

55
Image for BUSH TAILHOUSING 1275 G/BOX
BUSH TAILHOUSING 1275 G/BOX

Product Code: 2A3325

£6.90

£5.75

each x

56
Image for GASKET REMOTE GEARBOX MIDG1275
GASKET REMOTE GEARBOX MIDG1275

Product Code: 2A3344

£0.60

£0.50

each x

58
Image for FILLER DRAIN PLUG MGB G/BOX MI
FILLER DRAIN PLUG MGB G/BOX MI

Product Code: 2K5830

£7.19

£5.99

each x

62
Image for WASHER FIBRE 3/8 ID
WASHER FIBRE 3/8 ID

Product Code: 2K4956

£0.60

£0.50

each x

62
Image for WASHER FIBRE 3/8 ID
WASHER FIBRE 3/8 ID

Product Code: 2K4956

£0.60

£0.50

each x

63
Image for PLUG REVERSE PLUNGER - NLA
PLUG REVERSE PLUNGER - NLA

Product Code: 6K643

64
Image for BALL BEARING MGB MID TTY MGA
BALL BEARING MGB MID TTY MGA

Product Code: BLS110

£1.14

£0.95

each x

65
Image for PLUNGER MID MGB
PLUNGER MID MGB

Product Code: 2A3108

67
Image for SWITCH REVERSE
SWITCH REVERSE

Product Code: 13H4216

£21.36

£17.80

each x

72
Image for RETAINER - NLA
RETAINER - NLA

Product Code: AHA9487

73
Image for GEAR LEVER GAITER VINYL 1275 MIDGET

£9.13

£7.61

each x

74
Image for GEAR LEVER GAITER MIDGET
GEAR LEVER GAITER MIDGET

Product Code: ACA5208

£3.90

£3.25

each x

75
Image for LOCATING PIN GEAR LEVER MGB
LOCATING PIN GEAR LEVER MGB

Product Code: 1H3101

£2.52

£2.10

each x

78
Image for BALL BEARING MGB MID TTY MGA
BALL BEARING MGB MID TTY MGA

Product Code: BLS110

£1.14

£0.95

each x

79
Image for COPPER WASHER 7/8 O/D
COPPER WASHER 7/8 O/D

Product Code: AEG3122

£1.02

£0.85

each x

80
Image for SPRING MGB MIDG TD/TF G/BOX
SPRING MGB MIDG TD/TF G/BOX

Product Code: AEG3123

£0.90

£0.75

each x

Products not on diagram

Image for SYNCRONIZER 3RD AND 4TH - NLA
SYNCRONIZER 3RD AND 4TH - NLA

Product Code: AEG3009

Image for CLOSE RATIO GEAR SET MIDGET 1275 STRAIGHT CUT

£432.00

£360.00

each x

Image for ANTI RATTLE KIT 1275 GEARBOX
ANTI RATTLE KIT 1275 GEARBOX

Product Code: BGK1

£6.60

£5.50

each x

Image for NUT 1/4 INCH UNF HIGH TENSILE THIN
NUT 1/4 INCH UNF HIGH TENSILE THIN

Product Code: FNZ604

£0.42

£0.35

each x

Image for ALLOY GEAR KNOB MG LOGO
ALLOY GEAR KNOB MG LOGO

Product Code: RIC143

£29.36

£24.47

each x

Image for BEARING 3/LJ1 M/SHAFT 61-74
BEARING 3/LJ1 M/SHAFT 61-74

Product Code: 22A465

£20.06

£16.72

each x

Image for TUBE - 1275 MIDGET GEARBOX - NLA
TUBE - 1275 MIDGET GEARBOX - NLA

Product Code: 22A466

Image for REVERSE ROD MIDGET
REVERSE ROD MIDGET

Product Code: 22A468

Image for SHIFT FORK 1ST/2ND GEAR 1275
SHIFT FORK 1ST/2ND GEAR 1275

Product Code: 22A469

Image for ROD ST AND 2ND - NLA
ROD ST AND 2ND - NLA

Product Code: 22A470

Image for FORK 3RD AND 4TH - NLA
FORK 3RD AND 4TH - NLA

Product Code: 22A471

Image for SELECTOR ROD 3rd 4th GEAR
SELECTOR ROD 3rd 4th GEAR

Product Code: 22A472

£29.70

£24.75

each x

Image for GASKET REAR GEARBOX MIDG 1275
GASKET REAR GEARBOX MIDG 1275

Product Code: 22A481

£0.72

£0.60

each x

Image for PEG  3RD MOTION SHAFT MID 1275
PEG 3RD MOTION SHAFT MID 1275

Product Code: 22A495

£4.74

£3.95

each x

Image for BUSH PINION 1275 MID - NLA
BUSH PINION 1275 MID - NLA

Product Code: 22A71

Image for SPRING PLUNGER GEARBOX
SPRING PLUNGER GEARBOX

Product Code: 22A75

£1.38

£1.15

each x

Image for PLUNGER ANTI-RATTLE GEAR LEVER
PLUNGER ANTI-RATTLE GEAR LEVER

Product Code: 22A84

£1.26

£1.05

each x

Image for CAP - SPRING RETAINING - NLA
CAP - SPRING RETAINING - NLA

Product Code: 22A85

Image for GEAR LEVER KNOB MIDGET
GEAR LEVER KNOB MIDGET

Product Code: 22G110

£11.20

£9.33

each x

Image for REVERSE GEAR 1275 MIDGET
REVERSE GEAR 1275 MIDGET

Product Code: 22G1114

£59.76

£49.80

each x

Image for FIRST GEAR OUTER RING MIDGET
FIRST GEAR OUTER RING MIDGET

Product Code: 22G1118A

£66.60

£55.50

each x

Image for 2ND GEAR MIDGET 1275
2ND GEAR MIDGET 1275

Product Code: 22G1120

£101.95

£84.96

each x

Image for GEAR 3RD SPEED MIDGET 1275 - NLA
GEAR 3RD SPEED MIDGET 1275 - NLA

Product Code: 22G1121

Image for FRONT COVER GEARBOX
FRONT COVER GEARBOX

Product Code: 22G118

£68.82

£57.35

each x

Image for GEAR LEVER - 1275 1972-74 - NLA
GEAR LEVER - 1275 1972-74 - NLA

Product Code: 22G1397

Image for 1275 G/BOX MAINSHAFT
1275 G/BOX MAINSHAFT

Product Code: 22G146

£534.00

£445.00

each x

Image for NEEDLE ROLLER BEARING MIDGET
NEEDLE ROLLER BEARING MIDGET

Product Code: 22G149

£0.48

£0.40

each x

Image for SPRING MIDGET GEARBOX
SPRING MIDGET GEARBOX

Product Code: 22G154

Image for COLLAR MIDGET 1275 GEARBOX - NLA
COLLAR MIDGET 1275 GEARBOX - NLA

Product Code: 22G156

Image for COLLAR MIDGET 1275 GEARBOX - NLA
COLLAR MIDGET 1275 GEARBOX - NLA

Product Code: 22G157

Image for GASKET FRT GEARBOX MID 1275
GASKET FRT GEARBOX MID 1275

Product Code: 22G165

£0.52

£0.43

each x

Image for GEAR LEVER KNOB 1275 72-74
GEAR LEVER KNOB 1275 72-74

Product Code: 22G1860

Image for COLLAR MIDGET GEARBOX
COLLAR MIDGET GEARBOX

Product Code: 22G196

Image for DUST COVER TOP MIDGET G/BOX
DUST COVER TOP MIDGET G/BOX

Product Code: 22G199

£4.20

£3.50

each x

Image for BAULK RING GEARBOX MID 64-74
BAULK RING GEARBOX MID 64-74

Product Code: 22G2033

£11.94

£9.95

each x

Image for SPRING RING LAYSHAFT
SPRING RING LAYSHAFT

Product Code: 22G278

£0.60

£0.50

each x

Image for SYNCHRO SPRING 1275 MIDGET
SYNCHRO SPRING 1275 MIDGET

Product Code: 22G317

£0.65

£0.54

each x

Image for SPRING GEARBOX MGB MIDGET
SPRING GEARBOX MGB MIDGET

Product Code: 22G327

£0.43

£0.36

each x

Image for LEVER - NLA
LEVER - NLA

Product Code: 22G328

Image for LAYSHAFT 948-1275 MID
LAYSHAFT 948-1275 MID

Product Code: 22G673

£24.40

£20.33

each x

Image for PLUNGER 2ND SYNCRO G/BOX MID
PLUNGER 2ND SYNCRO G/BOX MID

Product Code: 22G89

Image for Shake Proof Washer Int  1/4 INCH (Pack 10)

£0.12

£0.10

Pack of 10 x
