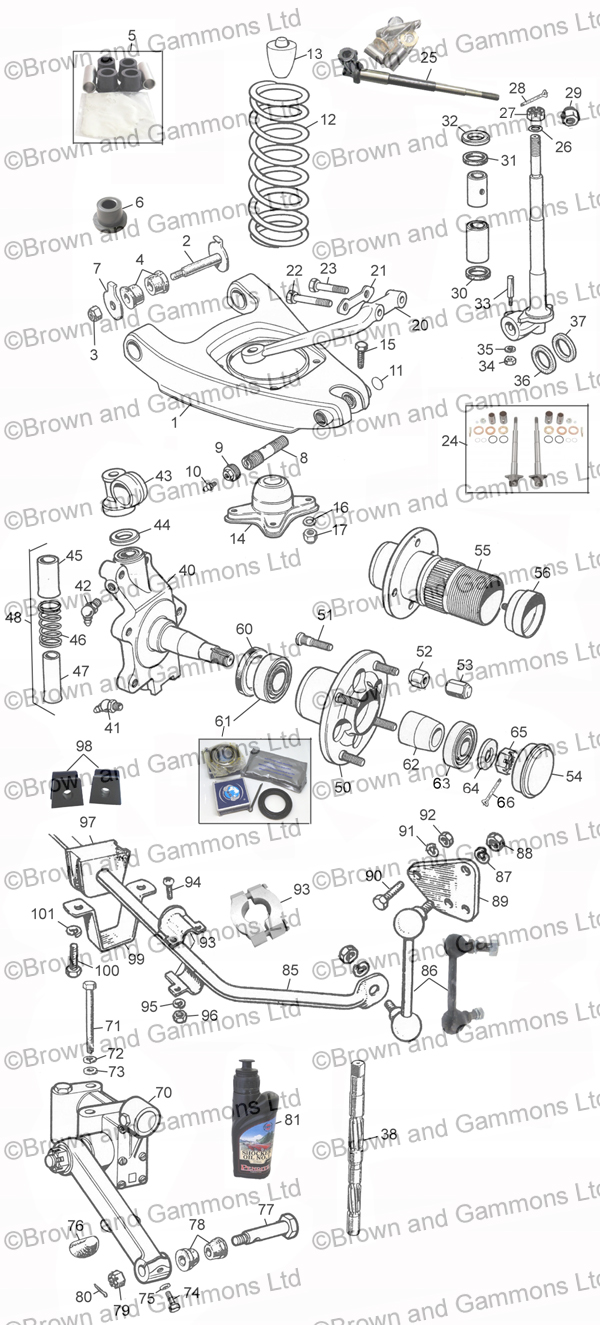

Front Suspension

Image for Front Suspension

Item

Description

Action

1
Image for NEW WISHBONE PAN OE MIDGET
NEW WISHBONE PAN OE MIDGET

Product Code: AHA7029

£101.40

£84.50

each x

1
Image for EX WISHBONE PAN MIDGET *SUR20*
EX WISHBONE PAN MIDGET *SUR20*

Product Code: AHA7029A

£39.91

£33.26

each x

2
Image for FULCRUM PIN WISHBONE/FRAME
FULCRUM PIN WISHBONE/FRAME

Product Code: 2A4272

£4.16

£3.47

each x

3
Image for NYLOC NUT 3/8 INCH UNF (PACK 10)
NYLOC NUT 3/8 INCH UNF (PACK 10)

Product Code: GHF223

£0.24

£0.20

Pack of 10 x

4
Image for BUSH FRONT SUSPENSION
BUSH FRONT SUSPENSION

Product Code: 8G621

£1.50

£1.25

each x

5
Image for OFFSET TOP TRUNNION BUSH (SET OF 4)
OFFSET TOP TRUNNION BUSH (SET OF 4)

Product Code: 8G621O/S

£47.94

£39.95

SET x

5
Image for Polybush Kit MGB Top Trunnion
Polybush Kit MGB Top Trunnion

Product Code: 8G621STK

£18.94

£15.78

SET x

6
Image for BUSH FRONT SUSPENSION COMP
BUSH FRONT SUSPENSION COMP

Product Code: 8G621C

£6.60

£5.50

each x

7
Image for WASHER INNER FULCRUM PIN MID
WASHER INNER FULCRUM PIN MID

Product Code: 2A4024

£1.88

£1.57

each x

8
Image for FULCRUM PIN KINGPIN/WISHBONE
FULCRUM PIN KINGPIN/WISHBONE

Product Code: 2A4020

£9.48

£7.90

each x

9
Image for PLUG WISHBONE PAN MIDGET
PLUG WISHBONE PAN MIDGET

Product Code: 8G589

£2.99

£2.49

each x

10
Image for GREASE NIPPLE MGB/C MID MGA
GREASE NIPPLE MGB/C MID MGA

Product Code: LN10051

£0.66

£0.55

each x

11
Image for FRT WISHBONE PLUG MIDGET
FRT WISHBONE PLUG MIDGET

Product Code: 51K3424

£0.36

£0.30

each x

12
Image for ROAD SPRING MIDGET 1961-1974
ROAD SPRING MIDGET 1961-1974

Product Code: CHA129

1275 & 1500 to G-AN6 171477 1961-74

£18.60

£15.50

each x

12
Image for SPRING FRT SUSPENSION MID1500
SPRING FRT SUSPENSION MID1500

Product Code: CHA570

G-AN6 171478 on

£15.83

£13.19

each x

13
Image for FRONT BUMPSTOP RUBBER MIDGET
FRONT BUMPSTOP RUBBER MIDGET

Product Code: AHA6378

£4.50

£3.75

each x

14
Image for SPRING PAN SUPPORT MIDGET
SPRING PAN SUPPORT MIDGET

Product Code: 2A4031

£20.10

£16.75

each x

15
Image for SET SCREW SPRING PAN MIDGET
SET SCREW SPRING PAN MIDGET

Product Code: 53K1368

£0.72

£0.60

each x

15
Image for SCREW 5/16 INCH UNF x 0.75 INCH
SCREW 5/16 INCH UNF x 0.75 INCH

Product Code: GHF120

£0.17

£0.14

Pack of 5 x

15
Image for S/STEEL 5/16th UNF x 3/4 INCH BOLT
S/STEEL 5/16th UNF x 3/4 INCH BOLT

Product Code: GHF120SS

£0.36

£0.30

Pack of 10 x

16
Image for USE WF600051
USE WF600051

Product Code: GHF322

Has been superseded by
Image for Shake Proof Washer Int  5/16 INCH - Pack of 10

£0.07

£0.06

Pack of 10 x

16
Image for Shake Proof Washer Int  5/16 INCH - Pack of 10

£0.07

£0.06

Pack of 10 x

17
Image for USE NY605041
USE NY605041

Product Code: GHF222

Has been superseded by
Image for NUT- NYLOC 5/16 UNF (PACK OF 10)
NUT- NYLOC 5/16 UNF (PACK OF 10)

Product Code: NY605041

£0.18

£0.15

Pack of 10 x

17
Image for NUT- NYLOC 5/16 UNF (PACK OF 10)
NUT- NYLOC 5/16 UNF (PACK OF 10)

Product Code: NY605041

£0.18

£0.15

Pack of 10 x

17
Image for NUT- NYLOC 5/16 UNF STAINLESS STEEL
NUT- NYLOC 5/16 UNF STAINLESS STEEL

Product Code: NY605041SS

£0.36

£0.30

each x

20
Image for STEERING ARM RH MIDGET 73 ON
STEERING ARM RH MIDGET 73 ON

Product Code: AHA9957

1973 on

£15.72

£13.10

each x

20
Image for STEERING ARM LH MIDGET
STEERING ARM LH MIDGET

Product Code: AHA9958

1973 on

Has been superseded by
Image for STEERING ARM LH MIDGET - USED
STEERING ARM LH MIDGET - USED

Product Code: AHA9958R

£18.00

£15.00

each x

20
Image for STEERING ARM LH MIDGET - USED
STEERING ARM LH MIDGET - USED

Product Code: AHA9958R

1973 on

£18.00

£15.00

each x

20
Image for USE BTA648R
USE BTA648R

Product Code: BTA648

G-AN4 to G-AN5 114642

Has been superseded by
Image for STEERING ARM RH - USED
STEERING ARM RH - USED

Product Code: BTA648R

£21.60

£18.00

each x

20
Image for STEERING ARM RH - USED
STEERING ARM RH - USED

Product Code: BTA648R

G-AN4 to G-AN5 114642

£21.60

£18.00

each x

20
Image for STEERING ARM LH - USED
STEERING ARM LH - USED

Product Code: BTA649

G-AN4 to G-AN5 114642

£24.00

£20.00

each x

21
Image for LOCKWASHER STEERING ARM MID
LOCKWASHER STEERING ARM MID

Product Code: 2K5377

£1.68

£1.40

each x

22
Image for STEERING ARM BOLT LONG MIDGET
STEERING ARM BOLT LONG MIDGET

Product Code: ATA4132

£1.47

£1.22

each x

23
Image for BOLT STEERING ARM MIDGET
BOLT STEERING ARM MIDGET

Product Code: 53K1370

£1.92

£1.60

each x

24
Image for KING PIN SET MIDGET
KING PIN SET MIDGET

Product Code: GSJ783

Without fulcrum pin

£51.53

£42.94

SET x

25
Image for Kingpin kit per side
Kingpin kit per side

Product Code: TD134

With fulcrum pin

£22.07

£18.39

KIT x

26
Image for KING PIN SHIM
KING PIN SHIM

Product Code: 2A4007

£0.61

£0.51

each x

27
Image for NUT CASTELLATED 7/16 INCH
NUT CASTELLATED 7/16 INCH

Product Code: ND607041

£1.80

£1.50

each x

28
Image for SPLIT PIN 7/64 x 1.1/2 inch  (PACK 10)

£0.12

£0.10

Pack of 10 x

29
Image for Nyloc Nut 7/16  inch
Nyloc Nut 7/16 inch

Product Code: NY607041

Alternative to nut and split pin

£0.54

£0.45

each x

30
Image for O RING SEALING -  LOWER
O RING SEALING - LOWER

Product Code: BTA613

£0.42

£0.35

each x

31
Image for O RING SEALING UPPER
O RING SEALING UPPER

Product Code: BTA607

£0.26

£0.22

each x

32
Image for THRUST WASHER - KING PIN - MIDGET
THRUST WASHER - KING PIN - MIDGET

Product Code: 2A4006

£2.40

£2.00

each x

33
Image for COTTER PIN WISHBONE MIDGET
COTTER PIN WISHBONE MIDGET

Product Code: 51K1769

£1.10

£0.92

each x

34
Image for USE GHF206A
USE GHF206A

Product Code: GHF206

Has been superseded by
Image for NUT 3/8 INCH AF 10.32 UNF HEX LARGE(PACK 10)

£0.12

£0.10

Pack of 10 x

34
Image for NUT 3/8 INCH AF 10.32 UNF HEX LARGE(PACK 10)

£0.12

£0.10

Pack of 10 x

34
Image for Stainless steel HEX nut 10.32 UNF
Stainless steel HEX nut 10.32 UNF

Product Code: GHF206SS

£0.24

£0.20

each x

35
Image for SPRING WASHER 3/16 INCH (PACK 10)
SPRING WASHER 3/16 INCH (PACK 10)

Product Code: WL700101

£0.12

£0.10

Pack of 10 x

35
Image for No 10 Spring Washer s/steel (Pack of 5)
No 10 Spring Washer s/steel (Pack of 5)

Product Code: WL700101SS

£0.18

£0.15

Pack of 5 x

36
Image for CORK RING KING PIN MIDGET
CORK RING KING PIN MIDGET

Product Code: 2A4206

£0.46

£0.38

each x

37
Image for CORK RING KING PIN MIDGET
CORK RING KING PIN MIDGET

Product Code: 2A4205

£0.48

£0.40

each x

38
Image for MIDGET KINGPIN BUSH REAMER
MIDGET KINGPIN BUSH REAMER

Product Code: 18G1006A

40
Image for EX. STUB AXLE RH MIDGET*SUR50*
EX. STUB AXLE RH MIDGET*SUR50*

Product Code: BTA744E

£61.92

£51.60

each x

40
Image for EX. STUB AXLE LH MIDGET*SUR50*
EX. STUB AXLE LH MIDGET*SUR50*

Product Code: BTA745E

£61.92

£51.60

each x

41
Image for GREASE NIPPLE MGB MIDGET
GREASE NIPPLE MGB MIDGET

Product Code: LN30041

£0.95

£0.79

each x

42
Image for GREASE NIPPLE 45 DEGREES
GREASE NIPPLE 45 DEGREES

Product Code: UHN445

£1.26

£1.05

each x

43
Image for TOP TRUNNION  MIDGET
TOP TRUNNION MIDGET

Product Code: 2A4005

£20.86

£17.38

each x

44
Image for THRUST WASHER - KING PIN - MIDGET
THRUST WASHER - KING PIN - MIDGET

Product Code: 2A4006

£2.40

£2.00

each x

45
Image for USE BTA606K
USE BTA606K

Product Code: 2A4010

Has been superseded by
Image for DUST TUBE KIT DISC WHEELS
DUST TUBE KIT DISC WHEELS

Product Code: BTA606K

£8.10

£6.75

each x

46
Image for SPRINGS DUST TUBE MIDGET
SPRINGS DUST TUBE MIDGET

Product Code: 6K653

£0.36

£0.30

each x

47
Image for BOTTOM DUST EXCLUDER TUBE
BOTTOM DUST EXCLUDER TUBE

Product Code: BTA606

£2.88

£2.40

each x

48
Image for DUST TUBE KIT DISC WHEELS
DUST TUBE KIT DISC WHEELS

Product Code: BTA606K

£8.10

£6.75

each x

50
Image for FRONT HUB
FRONT HUB

Product Code: BTA1254

Steel Wheels

51
Image for STUD WHEEL MIDGET
STUD WHEEL MIDGET

Product Code: NAM5645

Steel Wheels

£2.76

£2.30

each x

52
Image for WHEEL NUT MIDGET
WHEEL NUT MIDGET

Product Code: 88G322

Steel Wheels

£0.67

£0.56

each x

53
Image for WHEEL NUT 3/8 UNF CONICAL
WHEEL NUT 3/8 UNF CONICAL

Product Code: 88G577

Steel Wheels

£1.82

£1.52

each x

53
Image for WHEEL NUT ROYSTLE MIDGET
WHEEL NUT ROYSTLE MIDGET

Product Code: AHA8785

£1.68

£1.40

each x

53
Image for WHEEL NUT MG With MG logo
WHEEL NUT MG With MG logo

Product Code: AHA8785A

£2.75

£2.29

each x

54
Image for CAP GREASE MIDGET  MGB
CAP GREASE MIDGET MGB

Product Code: 2A4067

Steel Wheels

£5.40

£4.50

each x

55
Image for FRONT HUB RH MID (BRAKE DISC)
FRONT HUB RH MID (BRAKE DISC)

Product Code: BTA686

£68.94

£57.45

each x

55
Image for FRONT HUB LH MID (BRAKE DISC)
FRONT HUB LH MID (BRAKE DISC)

Product Code: BTA687

£69.00

£57.50

each x

56
Image for GREASE CAP W/WHEEL HUB MGB/C
GREASE CAP W/WHEEL HUB MGB/C

Product Code: BTC392

Wire Wheels only

£3.80

£3.17

each x

60
Image for OIL SEAL FRT HUB MIDGET
OIL SEAL FRT HUB MIDGET

Product Code: GHS142

£5.94

£4.95

each x

61
Image for USE GHK1142
USE GHK1142

Product Code: GHB129

Has been superseded by
Image for HUB BEARING KIT FRONT MIDGET
HUB BEARING KIT FRONT MIDGET

Product Code: GHK1142

£21.54

£17.95

each x

61
Image for HUB BEARING KIT FRONT MIDGET
HUB BEARING KIT FRONT MIDGET

Product Code: GHK1142

£21.54

£17.95

each x

62
Image for CONE SPACER FRONT HUB MIDGET
CONE SPACER FRONT HUB MIDGET

Product Code: 88G321

£6.54

£5.45

each x

62
Image for SPACER FRT HUB MIDGET USED
SPACER FRT HUB MIDGET USED

Product Code: 88G321U

£4.20

£3.50

each x

63
Image for BEARING HUB OUTER MIDGET
BEARING HUB OUTER MIDGET

Product Code: GHB128

£15.90

£13.25

each x

63
Image for USE GHF206A
USE GHF206A

Product Code: GHF206

Has been superseded by
Image for NUT 3/8 INCH AF 10.32 UNF HEX LARGE(PACK 10)

£0.12

£0.10

Pack of 10 x

63
Image for NUT 3/8 INCH AF 10.32 UNF HEX LARGE(PACK 10)

£0.12

£0.10

Pack of 10 x

63
Image for Stainless steel HEX nut 10.32 UNF
Stainless steel HEX nut 10.32 UNF

Product Code: GHF206SS

£0.24

£0.20

each x

64
Image for HUB WASHER MIDGET
HUB WASHER MIDGET

Product Code: 2A4003

£2.46

£2.05

each x

65
Image for USE NL610041
USE NL610041

Product Code: 51K328

Has been superseded by
Image for CASTLE NUT 5/8 INCH UNF
CASTLE NUT 5/8 INCH UNF

Product Code: NL610041

£2.04

£1.70

each x

65
Image for CASTLE NUT 5/8 INCH UNF
CASTLE NUT 5/8 INCH UNF

Product Code: NL610041

£2.04

£1.70

each x

66
Image for SPLIT PIN 1/8 INCH x 1.1/2 INCH (PACK 10)

£0.12

£0.10

Pack of 10 x

70
Image for COMP FRT S/ABS RH MID
COMP FRT S/ABS RH MID

Product Code: GSA102C

£96.12

£80.10

each x

70
Image for EX FRT S/ABS RH MID
EX FRT S/ABS RH MID

Product Code: GSA102E

£31.02

£25.85

each x

70
Image for NEW FR SHOCKER RH MID
NEW FR SHOCKER RH MID

Product Code: GSA102N

£120.00

£100.00

each x

70
Image for COMP FRT S/ABS LH MID
COMP FRT S/ABS LH MID

Product Code: GSA103C

£96.12

£80.10

each x

70
Image for EX FRT S/ABS LH MIDGET
EX FRT S/ABS LH MIDGET

Product Code: GSA103E

£31.02

£25.85

each x

70
Image for NEW FRT SHOCKER MID LH
NEW FRT SHOCKER MID LH

Product Code: GSA103N

£120.00

£100.00

each x

71
Image for BOLT 3/8 INCH UNF X 4.0 INCH
BOLT 3/8 INCH UNF X 4.0 INCH

Product Code: BH606321

Midget 1275

£0.84

£0.70

each x

71
Image for BOLT SHOCKER MIDGET 1500
BOLT SHOCKER MIDGET 1500

Product Code: CHA398

Midget 1500

£1.92

£1.60

each x

72
Image for PLAIN WASHER 3/8 INCH (PACK 10)
PLAIN WASHER 3/8 INCH (PACK 10)

Product Code: GHF302

£0.12

£0.10

Pack of 10 x

73
Image for SPRING WASHER 5/16 inch
SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

73
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

74
Image for BOLT PROPSHAFT FLANGE UNF
BOLT PROPSHAFT FLANGE UNF

Product Code: AAA4039

£0.65

£0.54

each x

75
Image for SPRING WASHER 5/16 inch
SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

75
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

76
Image for BUFFER FRONT SHK/ABS MIDGET
BUFFER FRONT SHK/ABS MIDGET

Product Code: 2A4082

£1.44

£1.20

each x

77
Image for TOP FULCRUM PIN TO SHOCK ARM
TOP FULCRUM PIN TO SHOCK ARM

Product Code: 2A4028

£2.76

£2.30

each x

78
Image for TOP KINGPIN BUSH MIDGET
TOP KINGPIN BUSH MIDGET

Product Code: 88G274

£1.50

£1.25

each x

79
Image for NUT TOP FULCRUM PIN MIDGET
NUT TOP FULCRUM PIN MIDGET

Product Code: ND606041

£0.43

£0.36

each x

80
Image for SPLIT PIN 3/32 INCH x 1.5 INCH (PACK 10)

£0.08

£0.07

Pack of 10 x

81
Image for PENRITE SHOCK OIL NO1 500M
PENRITE SHOCK OIL NO1 500M

Product Code: GGL9038X

£7.20

£6.00

each x

85
Image for FRT SUSP ANTI ROLL BAR 9/16 MI
FRT SUSP ANTI ROLL BAR 9/16 MI

Product Code: AHA7013

Standard fitment for UK from G-AN5 138801 on

£50.90

£42.42

each x

86
Image for ANTI ROLL BAR LINK RH MIDGET
ANTI ROLL BAR LINK RH MIDGET

Product Code: AHA7011A

£15.90

£13.25

each x

86
Image for ANTI ROLL BAR LINK LH MIDGET
ANTI ROLL BAR LINK LH MIDGET

Product Code: AHA7012A

£15.90

£13.25

each x

87
Image for SPRING WASHER 7/16 INCH
SPRING WASHER 7/16 INCH

Product Code: GHF334

£0.18

£0.15

each x

88
Image for NUT 7/16 INCH UNF
NUT 7/16 INCH UNF

Product Code: GHF203

£0.26

£0.22

each x

89
Image for BRACKET ANTIROLL BAR MIDGET
BRACKET ANTIROLL BAR MIDGET

Product Code: AHA7028

£3.59

£2.99

each x

90
Image for SCREW 5/16 INCH UNF x 0.75 INCH
SCREW 5/16 INCH UNF x 0.75 INCH

Product Code: GHF120

£0.17

£0.14

Pack of 5 x

90
Image for S/STEEL 5/16th UNF x 3/4 INCH BOLT
S/STEEL 5/16th UNF x 3/4 INCH BOLT

Product Code: GHF120SS

£0.36

£0.30

Pack of 10 x

91
Image for SPRING WASHER 5/16 inch
SPRING WASHER 5/16 inch

Product Code: GHF332

£0.07

£0.06

Pack of 10 x

91
Image for S/STEEL SPRING WASHER 5/16 INCH
S/STEEL SPRING WASHER 5/16 INCH

Product Code: GHF332SS

£0.12

£0.10

each x

92
Image for NUT 5/16 inch UNF (PACK 10)
NUT 5/16 inch UNF (PACK 10)

Product Code: GHF201

£0.12

£0.10

Pack of 10 x

92
Image for S/STEEL NUT 5/16 INCH UNF
S/STEEL NUT 5/16 INCH UNF

Product Code: GHF201SS

£0.20

£0.17

each x

93
Image for ENDSTOP 9/16 A/ROLL BAR
ENDSTOP 9/16 A/ROLL BAR

Product Code: AHH6546A

£11.94

£9.95

each x

93
Image for ENDSTOP 9/16 A/ROLL BAR
ENDSTOP 9/16 A/ROLL BAR

Product Code: AHH6546A

£11.94

£9.95

each x

94
Image for 10 UNF x 7/16 INCH POZI PAN SCREW
10 UNF x 7/16 INCH POZI PAN SCREW

Product Code: PMZ307

Use with standard bar

£0.30

£0.25

each x

95
Image for SPRING WASHER 3/16 INCH (PACK 10)
SPRING WASHER 3/16 INCH (PACK 10)

Product Code: WL700101

£0.12

£0.10

Pack of 10 x

95
Image for No 10 Spring Washer s/steel (Pack of 5)
No 10 Spring Washer s/steel (Pack of 5)

Product Code: WL700101SS

£0.18

£0.15

Pack of 5 x

97
Image for BUSH ROLL BAR 9/16
BUSH ROLL BAR 9/16

Product Code: AHH6541

£1.14

£0.95

each x

97
Image for POLYURETHANE 9/16 ROLL BAR MT
POLYURETHANE 9/16 ROLL BAR MT

Product Code: AHH6541ST

£2.77

£2.31

each x

98
Image for Polyurethane Bush 9/16 Roll Bar - Car Set MGB

£11.38

£9.48

SET x

98
Image for Polyurethane Bush 9/16 Roll Bar - Car Set MGB

£11.38

£9.48

SET x

99
Image for STRAP ANTI-ROLL BAR BRACKET
STRAP ANTI-ROLL BAR BRACKET

Product Code: BHH2000

£1.80

£1.50

each x

100
Image for SET SCREW 5/16 INCH UNF X 0.625 INCH
SET SCREW 5/16 INCH UNF X 0.625 INCH

Product Code: SH605051

£0.30

£0.25

each x

100
Image for SPRING WASHER 3/16 INCH (PACK 10)
SPRING WASHER 3/16 INCH (PACK 10)

Product Code: WL700101

£0.12

£0.10

Pack of 10 x

100
Image for No 10 Spring Washer s/steel (Pack of 5)
No 10 Spring Washer s/steel (Pack of 5)

Product Code: WL700101SS

£0.18

£0.15

Pack of 5 x

Products not on diagram

Image for COIL SPRING MIDGET MK1
COIL SPRING MIDGET MK1

Product Code: 2A4214

£21.59

£17.99

each x

Image for RADIUS ARM BUSH SPRITE/MIDG
RADIUS ARM BUSH SPRITE/MIDG

Product Code: 2A7278

£9.30

£7.75

each x

Image for POLYURATHANE BUSH RADIUS ARM
POLYURATHANE BUSH RADIUS ARM

Product Code: 2A7278ST

£18.14

£15.12

each x

Image for RADIUS ARM S&M
RADIUS ARM S&M

Product Code: 2A7310

£30.00

£25.00

each x

Image for KING PIN KIT X 1 - MIDGET DRUM BRAKES

£45.72

£38.10

KIT x

Image for MOUNTING BRACKET LH
MOUNTING BRACKET LH

Product Code: AHA5306

£25.20

£21.00

each x

Image for USE AHA7029
USE AHA7029

Product Code: AHA7029FROG

Has been superseded by
Image for NEW WISHBONE PAN OE MIDGET
NEW WISHBONE PAN OE MIDGET

Product Code: AHA7029

£101.40

£84.50

each x

Image for RING KING PIN SEAL MIDGET
RING KING PIN SEAL MIDGET

Product Code: AHA7405

£0.86

£0.72

each x

Image for M10 NYLOC NUT
M10 NYLOC NUT

Product Code: NY110041

£0.60

£0.50

each x

Image for USE AHA7029
USE AHA7029

Product Code: 21A153E

Has been superseded by
Image for NEW WISHBONE PAN OE MIDGET
NEW WISHBONE PAN OE MIDGET

Product Code: AHA7029

£101.40

£84.50

each x

Basket

You have 0 Items - £0.00

View Basket

Quick Search
