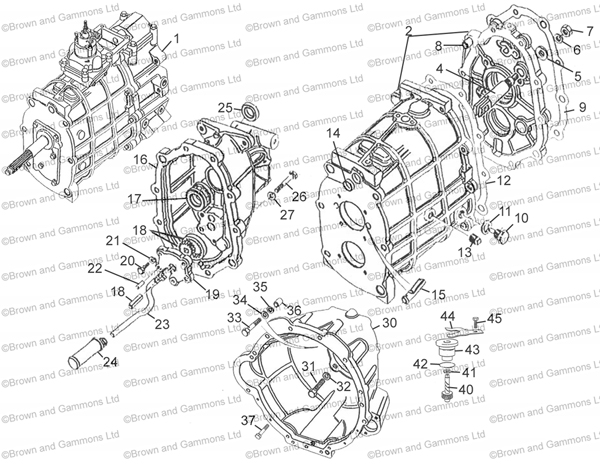

LT77 External - Gearbox

Image for LT77 External - Gearbox

Item

Description

Action

0
Image for GASKET - GEARCASE
GASKET - GEARCASE

Product Code: TKC1229

1
Image for TRANSMISSION ASSEMBLY
TRANSMISSION ASSEMBLY

Product Code: ZKC6641

2
Image for GEARCASE AND CENTRE PLATE
GEARCASE AND CENTRE PLATE

Product Code: FTC2192

4
Image for PIN - REVERSE OPERATING
PIN - REVERSE OPERATING

Product Code: FRC8383

£16.39

£13.66

each x

5
Image for WASHER PLAIN 3/8 INCH (PACK 10)
WASHER PLAIN 3/8 INCH (PACK 10)

Product Code: GHF302

£0.12

£0.10

Pack of 10 x

5
Image for Flat washer M10
Flat washer M10

Product Code: WA110061

£0.12

£0.10

each x

6
Image for WASHER - SPRING
WASHER - SPRING

Product Code: WL100001

7
Image for Flanged Nut M10
Flanged Nut M10

Product Code: FN110041

£2.20

£1.83

each x

8
Image for DOWEL RV8 GEARBOX
DOWEL RV8 GEARBOX

Product Code: UKC170

9
Image for GASKET - GEARCASE
GASKET - GEARCASE

Product Code: TKC1235

10
Image for PLUG - MAGNETIC
PLUG - MAGNETIC

Product Code: FRC6145

11
Image for WASHER - JOINT
WASHER - JOINT

Product Code: FRC7064

13
Image for USE 3292A
USE 3292A

Product Code: 3292

Has been superseded by
Image for PLUG OIL LEVEL RV8
PLUG OIL LEVEL RV8

Product Code: 3292A

£0.72

£0.60

each x

13
Image for PLUG OIL LEVEL RV8
PLUG OIL LEVEL RV8

Product Code: 3292A

£0.72

£0.60

each x

14
Image for CORE PLUG - GEARBOX RV8
CORE PLUG - GEARBOX RV8

Product Code: UKC30

15
Image for OIL CATCHER
OIL CATCHER

Product Code: TKC5779

16
Image for EXTENSION CASE
EXTENSION CASE

Product Code: FTC314

17
Image for RING - OIL FEED
RING - OIL FEED

Product Code: FRC5672

18
Image for OIL PUMP GEAR AND SHAFT - KIT
OIL PUMP GEAR AND SHAFT - KIT

Product Code: STC820

18
Image for OIL PUMP GEAR AND SHAFT - KIT
OIL PUMP GEAR AND SHAFT - KIT

Product Code: STC820

19
Image for OIL PUMP BODY
OIL PUMP BODY

Product Code: FTC3624

20
Image for Flanged screw M6
Flanged screw M6

Product Code: FS106201

£0.60

£0.50

each x

21
Image for WASHER - SPRING M6
WASHER - SPRING M6

Product Code: WL106001

£0.96

£0.80

each x

22
Image for DOWEL - OIL PUMP BODY
DOWEL - OIL PUMP BODY

Product Code: UKC2738

23
Image for INLET PIPE - OIL PUMP
INLET PIPE - OIL PUMP

Product Code: FRC7572

24
Image for OIL FILTER
OIL FILTER

Product Code: FRC7855

25
Image for OIL SEAL - EXTENSION CASE
OIL SEAL - EXTENSION CASE

Product Code: FRC6084

25
Image for 'O' RING - EXTENSION CASE
'O' RING - EXTENSION CASE

Product Code: FRC7712

26
Image for BOLT FLANGED- M8
BOLT FLANGED- M8

Product Code: FB108101

Quantity 6 for this part number

£1.50

£1.25

each x

26
Image for BOLT M8 - STEERING RACK TO CROSSMEMBER
BOLT M8 - STEERING RACK TO CROSSMEMBER

Product Code: FB108111P

Quantity 2 for this part number

£0.89

£0.74

each x

27
Image for WASHER
WASHER

Product Code: WL108001

30
Image for BELL HOUSING - GEARBOX
BELL HOUSING - GEARBOX

Product Code: FRC133

31
Image for BOLT
BOLT

Product Code: SH112301

32
Image for WASHER SPRING
WASHER SPRING

Product Code: WL112001

33
Image for BOLT
BOLT

Product Code: BH112091

34
Image for WASHER - PLAIN
WASHER - PLAIN

Product Code: WA112081

£0.48

£0.40

each x

35
Image for WASHER SPRING
WASHER SPRING

Product Code: WL112001

36
Image for DOWEL - HOLLOW
DOWEL - HOLLOW

Product Code: UKC25

37
Image for BOLT 3/8 INCH UNC x 2 INCH LONG
BOLT 3/8 INCH UNC x 2 INCH LONG

Product Code: BH506161

£1.22

£1.02

each x

40
Image for GEAR - SPEEDO RV8
GEAR - SPEEDO RV8

Product Code: 219002

41
Image for SPEEDO PINION OIL SEAL MGB A
SPEEDO PINION OIL SEAL MGB A

Product Code: AAU2304A

£2.94

£2.45

each x

42
Image for 'O' RING MGB KING PIN
'O' RING MGB KING PIN

Product Code: TRS1620

£0.36

£0.30

each x

43
Image for Bearing - Speedo drive housing
Bearing - Speedo drive housing

Product Code: 22G1486

£17.58

£14.65

each x

44
Image for BRACKET - CLAMPING RV8
BRACKET - CLAMPING RV8

Product Code: 533765A

£5.22

£4.35

each x

45
Image for Flanged screw M6
Flanged screw M6

Product Code: FS106201

£0.60

£0.50

each x

Products not on diagram

Image for BREATHER ASSEMBLY
BREATHER ASSEMBLY

Product Code: 22G1941
